??? - What Brand of Bowl Do You Need Parts
For? Find out by "looking" on the bottom of the bowl between the
front and strainer where molded in the bottom is the brand and model
number. For example, "Marble Products #10"
*******************************************
Belvedere
*******************************************
Notice to Plumbers:
* Maximum Thickness of Bowl Opening: 7/16" (maybe up to 15/32")
* Fixture Opening in Bowl must be a Minimum of 1-5/32" Diameter and a Maximum of 1-1/2" Diameter to accommodate this fixture.
622c Fixture
by Belvedere
* Crystal Clear Plastic Handle that has a "Tear Drop" shape when you look down at it.
* ON: pull up
* OFF: push down
* TWIST: for hot / cold mixture
* The Hot & Cold inlets are standard male 1/2" (NPT) fittings
* The standard 1/4 Spray Hose Nipple allows access to change the hose out without removing the fixture.
* The fixture has a threaded neck area (approximately 9/16" long) and 1-1/8" diameter
* Maximum Thickness of Bowl Opening: 7/16" (maybe up to 15/32")
* Fixture Opening in Bowl must be a Minimum of 1-5/32" Diameter and a Maximum of 1-1/2" Diameter to accommodate this fixture.
Can be used also to replace the #112 two handle fixture that came with Belvedere Shampoo Bowls for years prior to 1990. The # 112 fixture is discontinued.
** Note you will need the Belvedere Flo Temp Caps * Black (item #444450901027) to cover the other two holes in the bowl that was also use by the 112 Two Handle Fixture. Traditionally the New 622C fixture is placed in the far right hole and the cover caps are use to cover the other 2 holes.
** NOTE:
MOST of the TIME this is the ONLY Single Handle Fixture that will fit the OLDER BELVEDERE Bowls because of the Un-uniform Thickness of the Porcelain Finish on the bowl. This fixture has a long enough threaded neck area (approximately 9/16") that will allow the fixture body to go thru the bowl opening and allow the Chrome escutcheon ring to thread 1/4" onto the fixtures body to hold the fixture onto the bowl.

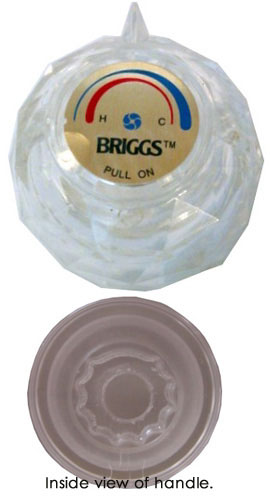

* Replacement Handle for
Belvedere # 622TC Single Handle Fixture
* Crystal Clear Plastic Handle
* "Tear Drop Shape" when looking down from top
* Includes: Handle Cover, Handle Screw, Handle Washer and Handle
Handle for Belveder #622c
Single Lever Fixture * Handle Only $
49.99
******************************************
Item # 50901021
Flo-Temp Chrome Metal Cover Plate by Belvedere
FIXTURE PART * Flo-Temp Chrome METAL Cover Plate
* BELVEDERE
* NEW/old Stock
* Covers 2 of the 3 Holes in the cast iron porcelain enamel Shampoo Bowl when using a single handle #622c fixture (fixture Not Included)
* CONTAINS: One (1) - Flo-Temp Chrome METAL Cover Plate, One (1) Rubber Gasket, One (1) - Mounting Bracket, Two (2) - Mounting Srews and installation instructions
* Appoximate Size: 1-3/4" wide X 3-1/2" long
* Belvedere part # 50901021
*** The Original Chrome METAL Flo-Temp COVER PLATE Directions: Place the Flo-Temp cover plate and gasket over the 2 left-hand holes in the bowl fixture deck. Then attach the mounting bracket on the bottom side of the bowl with the 2 mounting screws included.
We are happy to offer this New/Old Stock we just acquired! For those who want it "All Original"
ONE (1) in Stock
Flo-Temp Chrome Metal Cover Plate by Belvedere $ 31.99
***********************************************
BELVEDERE Flo Temp Caps *Black
* Covers 2 of
the 3 Holes in the cast iron porcelain enamel Shampoo Bowl when using a
single handle #622c fixture (fixture Not Included)
* CONTAINS: Two (2) - Black Plastic Caps and
installation instructions
* General Directions: Press Caps into the holes, Complete installation
instructions included.
*** Replaces
Chrome Plastic Flo-Temp COVER PLATE(below), No Longer Made
BELVEDERE Flo Temp Caps * Black $ 29.89
******************************************
5090102
Flo-Temp
Cover Plate
by Belvedere
Use with #622c and #528
Fixture
Includes:
1- Cover Plate
1- Gasket
1- Mounting Bracket
2- Screws
We are happy to offer this New/Old Stock we just acquired! For those who want it "All Original"
Place
the Flo-Temp cover plate and gasket over the 2 left-hand holes in the
bowl fixture deck. Then attach the mounting bracket on the bottom side
of the bowl with the 2 mounting screws included.
Note: This cartridge will Not fit the old 622 fixture that would have been used before 1985 * this cartridge is bigger in Dia. and Longer. That Cartridge is no longer available.
622c Cartridge with clip $ 49.97
*******************************************
Generic BELVEDERE REPLACEMENT CARTRIDGE for #622 Fixture
Generic replacement part for the 622c Fixture comes with clip as shown.
Dimensions: Length with Stem up 4-3/16"
Length with Stem down 3-7/8"
* Clear Plastic with Rubber Gaskets
*** THIS ITEM IS NON-RETURNABLE ***
We have sold the "Generic" and the "Original" cartridge for years.
As it's name implies this "Generic" cartridge will work but is not the same QUALITY as the "Original Belvedere" replacement cartridge.
Generic BELVEDERE REPLACEMENT CARTRIDGE for #622 Fixture $ 44.97
*******************************************
#228C

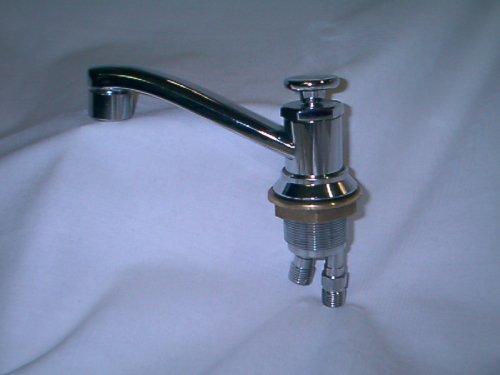

Belvedere Diverter Spout # 228C
* Swinging Spout diverter for use with 622 fixture or by its self.
* Fits ONLY Belvedere Shampoo Bowl NOTE: this is NEW / OLD STOCK !!! sold AS IS !!! This item was acquired from a old supply house and the items have been setting on shelf in a open box so there may be dust on the item and may have some visable signs of age but are NEW and not used. Belvedere shipped these years ago wrapped up in paper with little or no protection to the chrome area. We have checked them out visably, cleaned some what and have packed-up to protect the item. The item may need the O-Rings replaced if they leak, O-Rings should be found at a hardware store in the plumbing department.
* Was orginaly intended to be used with the Belvedere 622C Single Handle Fixture but later used as a stand alone Diverter (cross over hose would need to be used to connect the fixture to the Diverter on stand alone)
* The Shampoo Spray Hose (not included) would connect to the bottom of Diverter
* Includes Clamp-Yoke, Mounting Nut and Tailpiece
* Faucet has 4-1/2" Swivel Spout with manual Lift-up diverter knob.
* Pull up to divert water through spray hose, push down to redirect through spout.
* Opening in Bowl must be a Minimum of 1-5/32" Diameter and a Maximum of 1-1/2" Diameter to accommodate this fixture.
Note: This diverter spout will ONLY fit Belvedere brand shampoo bowls !!!
SOLD AS IS as it is NEW / OLD STOCK and is a FINAL SALE
Belvedere Diverter Spout # 228C DISCONTINUED and OUT OF STOCK
*******************************************
522 Fixture
by Belvedere

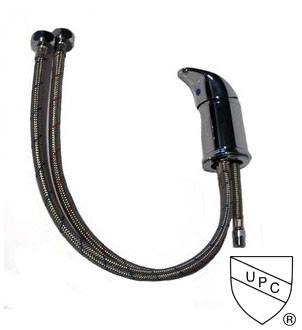

Deck Mount Fixture By BELVEDERE
* Chrome
* Single Handle Control
* ON: Push Back * OFF: pull Forward * Turn left and right: for hot / cold mixture
* This Newest Up Grade includes 14" Metal Flex Hot and Cold Supply Lines with the Standard US 3/8" Connectors !!!
* This Low Profile (does not stand to tall, so the bowl lid will close) is ideal for wet booth station units.
# 522
* Fixture Opening in Bowl must be a Minimum of 1-1/8" and a Maximum of 1-3/8" to accommodate this fixture
* Fits Belvedere cast iron porcelain shampoo bowls #3100, 3800, 8400K and 8600 that ** came with this fixture
* Also fits the Belvedere acrylic/ABS Shampoo Bowls model #2100 Omega & model #2800 Beta
** The model # 522 fixture will ONLY replace the 522 fixture that came on your bowl. It will not replace the single handle fixture with a "Tear Drop" shape plastic handle nor will it fit the Belvedere bowls with 2 handle fixture (see below for their replacement).
The Older Belvedere Bowls with 3 holes have a thickness of about 1/2" which is to thick so the threads of the Belvedere #522 fixture will not come thru to fasten to the female threaded collar on the top of the fixture.
Dimensions:
* Overall Length with Stem up, measuring from top of stem to bottom of mounting points 2-5/16"
* Overall Diameter 1-7/16"
* Center to Center of the two Mounting Points 23/32"
* Inside fixture Mounting Height measuring from top of shoulder to bottom of mounting points 1-3/16"
* Mounting Point height 1/8" tall
* Stem Shoulder height 3/8"
* Stem Shoulder Outside Diameter 15/16"
* Stem Shoulder Inside Diameter 3/4"
* Stem height from Shoulder 3/4"
NEW! Deck Mount Fixture By BELVEDERE, Chrome, Single
Handle Control with Diverter Spout
* Fits Belvedere Bowls
* May need Flo Temp Caps for 2 of the 3 Holes in Bowl * Sold Separately
Item # 444450901027
This Fixture Replaces the Discountiued 2 handle with Diverter Spout #
4228P Fixture and Also Discontiued 622-228 Single Handle fixture with
Diverter Spout
Will Fit Bowl with 3 - Holes where fixture fits
Only one (1) in stock !
This
Fixture Replaces the Discountiued 2 handle with Diverter Spout # 4228P
Fixture and Also Discontiued 622-228 Single Handle fixture with
Diverter Spout
* Currently no more are unavailable from Belvedere. *
* We don't know when or if this item will be back in stock. *
The Best Replacement for this Discontinued Fixture is the:
This is a one way valve that
saves the integrity of the fresh water system by NOT allowing
contaminate water (water contaminated with perm solution, neutralizer,
hair color, etc.) from mixing with the fresh water system that we drink.
Material: Plastic
Plumbing Code: ASSE #1001
Consult your local plumber
and building codes for need of this product.
** Some OLD Belvedere Bowls with Butterfly
Shape in bowl under Hose Receiver
Like the Very OLD Belvedere #3000 Bowl this will NOT
fit without modification
No instructions on how to Modify.
Also the Very OLD Belvedere #3800 Bowl has the Very Same Problem
However we do have a Vacuum Breaker Kit with a Hose
Receiver (click here
to see!) that will fit without any modification.
The Only way to tell if your bowl has this
shape is to Remove the Hose Receiver on your bowl and see if it is a
rectangle hole or the Butterfly Shape
This is a one way valve that saves the integrity of the fresh water
system by not allowing contaminate water ( water contaminated with perm
solution, neutralizer, hair color and etc.) from mixing with the fresh
water system that we all drink.
Consult your local plumber and building codes for need of this product.

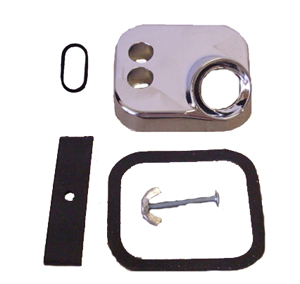

* Fits Belvedere Shampoo Bowls
* Vacuum Breaker Shampoo Hose Receiver
* Has 2 - 1/2" holes to the Left of the Hose Opening to accommodate
Belvedere Vacuum Breaker's #403 or #503
* Complete with Clamp (Steel square and 4 screws) and Gasket
* Chrome (Plastic)
* Dimension of Receiver 2-7/8" x 2-5/8"
Note:
** Some OLD Belvedere Bowls with Butterfly
Shape in bowl under Hose Receiver
Like the Very OLD Belvedere #3000 Bowl this will NOT
fit without modification
No instructions on how to Modify.
Also the Very OLD Belvedere #3800 Bowl has the Very Same Problem
However we do have a Hose Receiver (click here to see!)that
will
fit without any modification.
The Only way to tell if your bowl has this
shape is to Remove the Hose Receiver on your bowl and see if it is a
rectangle hole or the Butterfly Shape
This
vacuum breaker is a MUST for areas below:
Oregon state, Wisconsin State, and Los Angeles County, CA

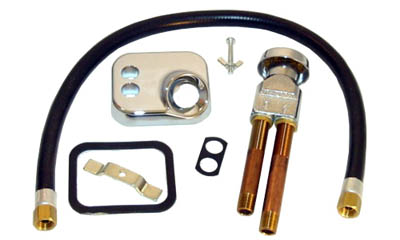

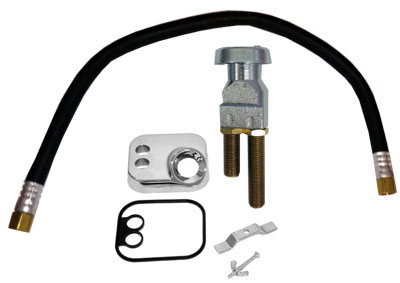

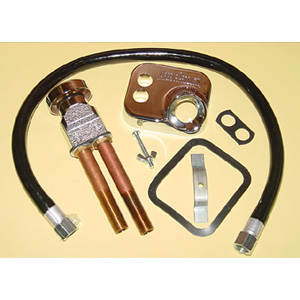

Includes: #503 Vacuum
Breaker, Hose Receiver, and Hose from Fixture to Breaker
* ASSE 1014 Approved
* Dimension of Receiver 2-7/8" x 2-5/8"
* Shampoo Hose is sold separately.
This is a one way valve that saves the integrity of the fresh water
system by Not allowing contaminate water ( water contaminated with perm
solution, neutralizer, hair color and etc.) from mixing with the fresh
water system that we all drink.
Consult your local plumber and building codes for need of this product.
*
Replaces #404 Vacuum Breaker *
Note:
** Some OLD Belvedere Bowls with Butterfly
Shape in bowl under Hose Receiver
Like the Very OLD Belvedere #3000 Bowl this will NOT
fit without modification
No instructions on how to Modify.
Also the Very OLD Belvedere #3800 Bowl has the Very Same Problem
However we do have a Vacuum Breaker Kit with a Hose
Receiver (click
here to see!) that will fit without any modification.
The Only way to tell if your bowl has this
shape is to Remove the Hose Receiver on your bowl and see if it is a
rectangle hole or the Butterfly Shape
LA, CA Vacuum Breaker #503C $
249.99
*******************************************

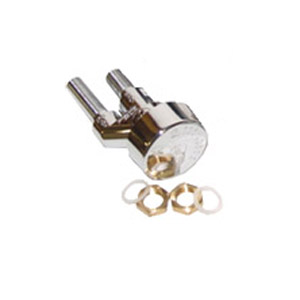

Belevdere VACUUM BREAKER #503 ONLY * No Other
Parts
Fits ONLY Belvedere Bowls
Includes: # 503 Vacuum Breaker ONLY
* Material: Plastic
* Plumbing Code ASSE # 1001
* Shampoo Hose and Receiver Plate
is sold separately.
**** This is a one way valve that
saves the integrity of the fresh water system by Not allowing
contaminate water ( water contaminated with perm solution, neutralizer,
hair color and etc.) from mixing with the fresh water system that we
all drink.
Consult your local plumber and building codes for need of this product.
**** # 503 VACUUM BREAKER ONLY ***
No other parts
Belevdere VACUUM BREAKER #503 ONLY * No Other
Parts $ 199.99
*******************************************
# 444428550000900

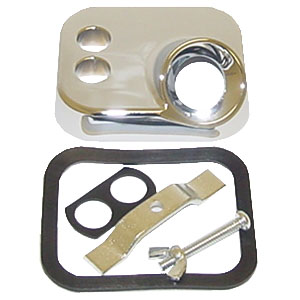

Hose Receiver
Kit * Plain
by Belvedere
* Plain Shampoo Hose Receiver
* NOT for Vacuum Breaker
* Fits Belvedere Shampoo Bowls Only
* Complete with Clamp (Steel square and 4 screws) and Gasket
* Chrome (Plastic)
* Dimension of Receiver 2-7/8" x 2-5/8"
Note:
** Some OLD Belvedere Bowls with Butterfly
Shape in bowl under Hose Receiver
Like the Very OLD Belvedere #3000 Bowl this will NOT
fit without modification
No instructions on how to Modify.
Also the Very OLD Belvedere #3800 Bowl has the Very Same Problem
However we do have a Hose Receiver (click here to see!)that
will
fit without any modification.
The Only way to tell if your bowl has this
shape is to Remove the Hose Receiver on your bowl and see if it is a
rectangle hole or the Butterfly Shape
** The valve balances water temperature to prevent fluctuations.
* Fits Belvedere, Marble Products, Jeffco, Collins, Pibbs and other Shampoo Bowls
* Factory Set at 105 Degrees (Can be Adjusted)
* Listing ASSE 1070 Approved and CSA B125 Approved (Plumbing Code #'s)
* Cast Brass Body
* Connect Hot and Cold supply lines and Valve to Fixture with 3/8" Compression Connections
* Design for Single Point Application ( Each Shampoo Bowl )
* Protects against Scalding and Thermal Shock
Stop Scalding your hands and your customers scalp when the operator shampooing next to you turns her water off !
Belvedere Bib Washers with Screws * for model 112 two handle fixture $ 9.17
*******************************************
Original Complete Strainer Assembly
by Belvedere
3-1/2"
# 5001829
Belvedere can NOT supply the above any longer.
Please see Replacement to the right
Replacement Complete Strainer Assembly
as of March 2024
for Belvedere
3-1/2"
# 4001829
Complete Strainer Assembly # 4001829 as of March 2024
$ 45.97

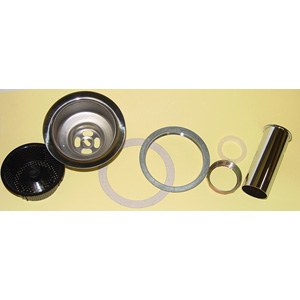

Replacement Shampoo Bowl STRAINER ASSEMBLY 3 1/2" * NEW
As of 2010 this is the Strainer Assembly that is shipped on the Belvedere bowls and as for the replacement assembly for most Belvedere bowls
Includes:
Strainer Cup, Strainer Body, Rubber Gasket, Cardboard Gasket, Body Lock Nut, Drain Tube Washer, Drain Tube, and Slip Nut as shown in the right illustration.
*******************************************
# 5001868
Strainer
for Belvedere
3-1/2"
Plastic strainer cup only
Fits year 2010 and after Belvedere Bowls
* Fits the NEW Belvedere 3-1/2" strainer shipped on bowls starting in 2010
* Has SOLID RIM with small holes in side and on bottom of cup
* Plastic strainer cup only
* May be BLACK or GREY in color
$ 8.19 each
2 - 4 * $ 7.99 each
5 - 11 * $ 7.79 each
12 or more * $ 7.19 each
Belvedere Strainer Cup as of 2010 and after fits the New strainer assembly
that are shipped on the Belvedere bowls and is the replacement STRAINER CUPS
for the new strainer assembly after 2010 for Belvedere bowls.
Note:
This Strainer Cup will NOT fit the OLD (prior to 2010) Strainer Assembly
The difference is the Diameter as well as the old strainer cup has SLITS around the top rim where as the New strainer cup has a SOLID rim around the top of the cup.
Strainer Cupfor Belvedere 3-1/2" * Plastic strainer cup only
*******************************************
older style
Strainer Cup
by Belvedere
3.0" Diameter
Plastic strainer cup only
Fits year 2009 and previous Belvedere Bowl Strainer Assembly
Note this strainer cup has "Slits" around top rim
Does NOT fit the current Belvedere strainer assembly !!!
older style 3" Belvedere Strainer Cup $ 42.97
*******************************************
Rubber Neck Rest
by Belvedere
* Large thick rubber Cushions
the Neck
* Secure attachment via 3 suction cups, shampoo your clients in comfort.
* For use with Belvedere 2100, 2800, 3100 and 3800 bowls
* Available in black only
* Currently unavailable. *
* We don't know when or if this item will be back in stock. *

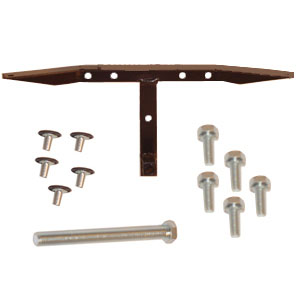

Belvedere Shampoo Bowl Bracket
Fits: #8400K * Only
*** Look on bottom of bowl for Model Number
molded into bowl ***
* Fits Only Belvedere Cast Iron Porcelain Bowl - 8400K ** Only
* Package contains: Metal Bracket and 1-Camber Bolt
* Usually mounted to wall with 4 - 5 wood screws ( not included )
*** Look on bottom of bowl for Model Number molded into bowl ***
Fits most Belvedere Bowls Cast Iron - #3800, 3100, 8000, 8100, 8200, 9000, and 1980W
Bracket has 2 slots to accommodate 2-tongues on Back of Bowl that is Parallel to Wall. Tongues are 9" Center
Package contains: WOOD with Black Laminate Bracket and 1-Camber Bolt
usually mounted with 5 wood screws ( not included )
Note: Belvedere #3100 bowl needs shorter Camber (leveling) bolt which is not included.
You would need to purchase a 5/16” x 1-1/2” Camber Bolt locally.
Bracket has 2 slots to accommodate 2-tongues on Back of Bowl that is Parallel to Wall. Tongues are 9" Center
Package contains: Metal Bracket and 1-Camber Bolt
usually mounted with 4 wood screws ( not included )
Note: Belvedere #3100 bowl needs shorter Camber (leveling) bolt which is not included, but may be purchased at a local store.
You would need to purchase a 5/16” x 1-1/2” Camber Bolt locally.
* Currently unavailable. *
* We don't know when or if this item will be back in stock. *
METAL Mounting Bracket
*******************************************
(BLACK in color)
Mounting Bracket
Fits Only Belvedere Bowl model 8600
&
*** Look on bottom of bowl for Model Number molded into bowl ***
Fits most Belvedere Bowls Cast Iron - #8600)
Mounts to bowl on the bottom
Package contains: Metal Bracket ONLY
usually mounted with 4 wood screws ( not included )
Item # 926450017675
METAL Mounting Bracket fits Belvedere 8600 model pivoting bowl
$ 265.97
* 1-1/2" Dia. FLEX DRAIN HOSE Only
* Color: Grey
* Material: Rubbery Plastic Hose with Plastic Fittings on each end.
* Has a smooth interior for efficient flow, great flex for long life, and durability for hot & cold applications
* Stretches to 18" long
* Has 1-1/2" (Standard Plumbing) Plastic Female Fittings on each end
* Includes: 2 Drain Tube Washers & 2 Plastic Drain Tube Slip Nuts
* Fits Tilting Bows: Collins CB21 ABS Plastic Bowl, Collins P-0546 Porcelain Bowl, Jeffco 8700 Porcelain bowl, Kaemark #903 Porcelain Bowl, Savvy Porcelain Tilt Bowl, Belvedere Pivoting Porcelain enamel cast iron Bowl #8600, Pibbs Tilting Porcelain Sink and Many Other Brands of Tilting Shampoo Bowls.
Question:
How will I know if this will fit my shampoo bowl ?
Answer:
1) If your Strainer Assembly has 1-1/2" male threads on the bottom of the strainer assembly.
AND
2) the Maximum Length you need is 18"
This part is only returnable if NOT INSTALLED !
(under Cache's normal Return Policy applies)
Flex Drain Hose for Welonda Backwash Tilting SHAMPOO BOWLS units.
Flex Drain Hose for Backwash Tilting SHAMPOO BOWLS
* 1-1/2" Dia. FLEX DRAIN HOSE Including "P" Trap (which is used between this flex hose and the drain pipe in floor or in the wall)
* Color: White
* Material: White Plastic Hose with Brass female threaded nut on one end (that fastens hose onto bottom of drain assembly with washer supplied), other end is plastic tail stock (which slides into the "P" or "J" Trap)
* Flex Hose Size: 1-1/2" Dia. (Standard Plumbing) X 14" Long
* Fits: Belvedere Welonda Ocean, Vida, Delta, Comfort Wash, Luno Wash, Oasis, Samoa, Tao, and Welondamat 1000 K backwash units
* Fits Tilting Bows: Belvedere Pivoting Porcelain enamel cast iron Bowl #8600
* Also Fits: Collins CB21 ABS Plastic Bowl, Collins P-0546 Porcelain Bowl, Jeffco 8700 Porcelain bowl, Kaemark #903 Porcelain Bowl, Savvy Porcelain Tilt Bowl, Pibbs Tilting Porcelain Sink and Many Other Brands of Tilting Shampoo Bowls.
Question:
How will I know if this will fit my shampoo bowl ?
Answer:
1) If your Strainer Assembly has 1-1/2" male threads on the bottom of the strainer assembly.
AND
2) the Maximum Length you need is 14" (your plumber may need to raise or lower the stubbed out drain pipe at the bowl location to accommodate this flex pipe assembly)
This Special Order Part is
in Stock
Ready to Ship !!!
This part is NON RETURNABLE!
Belvedere Flex Drain Hose for Tilting SHAMPOO BOWLS $125.97
* Package contains: Upper Metal Bracket and Lower Metal Bracket
* Upper Bracket Measures 3" Tall X 14" wide X 1/8" Thick
* Upper Bracket Mounts to wall with 4 wood screws ( not included )
* Lower Bracket Measures 4-1/2" wide X 1/8" Thick X 10-7/8" Long Front with 4" Dia. Opening to accommodate Strainer Assembly X 5-5/8" Tall Back with 5/16" wide X 1-1/2" long Slotted Hole (beginning 3-3/8"from bottom) to mount bracket to wall
*** Both UPPER & LOWER Brackets are Black Painted Steel
Fits: Marble Products Company (MPC) / Belmont heavy Marble Shampoo Bowls

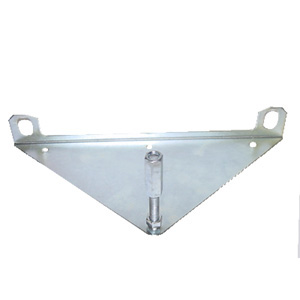

* Triangle Shape Metal Mounting Bracket Fits: Marble Products Man made Marble Bowls
* Has two taps turned out on top with holes to bolt into bottom of Shampoo Bowl
* Package contains: Metal Bracket and 1-Camber Bolt (leveling bolt)
* Usually mounted to wall with 4 wood screws ( not included )
* Fits: Marble Products Model # 100, 200, 2000, 3000W and 4000 Marble Shampoo Bowls
* Also Fits: the Marble Products PEDESTAL Bowls Model # 300 and # 2001
* Measurement between mounting bolts: 11-1/4" from center of bolt hole to center of bolt hole
** Look for the Model # on the Bottom of Bowl
* May Also Need Bowl Mounting Bolts item #926410000204 as seen below
UPC: 926410024002
MPC: 2400M
Marble Product Company (MPC) heavy Marble Shampoo Bowl MOUNTING BRACKET $ 41.99
*******************************************

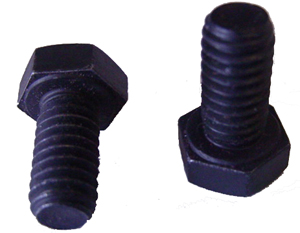

Bowl Mounting Bolts
For Marble
Bowls
* Fits:
Marble Products man made Marble Bowls
* Each fits thru the two taps turned out on top of the Mounting Bracket
(purchased separate) and threads up into the bowl.
* Package contains: 2 -- 1/4" Bolts x 5/8" Long
* Fits: Marble Products Model # 100, 200, 2000, 3000W and
4000 Marble Shampoo Bowls
Bowl Mounting Bolts $ 5.00
*******************************************
# 675410001208
SHAMPOO BOWL BRACKET FITS: #10 & #30
*** Look on bottom of bowl for Model Number
molded into bowl ***
Fits Marble #10 & #30 Fiberglass Bowls and Jeffco Brand Bowls #8400
& 8300
Also
Fits most Belvedere Bowls Cast Iron - #3800, 3100, 8000, 8100, 8200,
9000, and 1980W)
Bracket has 2 slots to accommodate 2-tongues on
Back of Bowl that is Parallel to Wall. Tongues are 9" Center
Package contains: Metal Bracket and 1-Camber Bolt
usually mounted with 5 wood screws ( included )
Overall Dimension:
16-3/8" Wide x 6-1/4" Tall x 3/4" Thick
SHAMPOO BOWL BRACKET FITS: #10 & #30 $ 33.97
*******************************************
60701000
This Bracket fits the shampoo bowl
above.

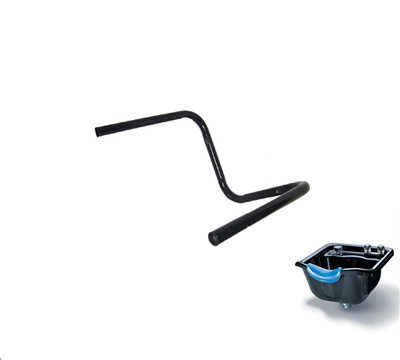

Koken Gypsy Bowl Bracket
Fits: Koken
Gypsy Bowls( Picture on the left)
* Steel tube that has 2 -
tubes that come from back of bowl that fit under side lip of bowl, V -
Shape in back with 3 - Holes to mount to wall with screws (screws Not
included)
* Fits Only Koken Gypsy Bowl
* Note Gypsy bowl is a all thin plastic bowl
Fits: Koken/Takara Belmont and Marble Products Shampoo Bowls

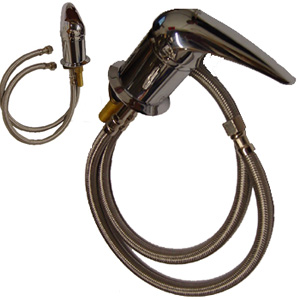

* The most advanced single control faucet made
* Round Acrylic Crystal Faucet Handle
* Push Handle back to Turn On; Pull Handle Forward to Turn Off !
* Push back for exact pressure disired. Dial the temperature you like, left for HOT, right for Cold. Turn water on or off without resetting
* The #550 fixture has only one moving part.
* Fixture Opening in Bowl must be a Minimum of 1-3/4" and a Maximum of 2" to accommodate this fixture
* Meets ASME A112.18.1
** Flow Rate is 3.5 Gallons per minute
Note: the Flow Rate is dependent upon the Main Supply Line and the water presure to your building. Supply line should be any where fron 1" Dia. to 1.5 Dia.
Fits: Koken/Takara Belmont and Marble Products Shampoo Bowls
* The most advanced single control faucet made
* Chrome Faucet Handle
* Push Handle back to Turn On; Pull Handle Forward to Turn Off !
* Push back for exact pressure disired. Dial the temperature you like, left for HOT, right for Cold. Turn water on or off without resetting
* The #550 fixture has only one moving part.
* Fixture Opening in Bowl must be a Minimum of 1-3/4" and a Maximum of 2" to accommodate this fixture
* Meets ASME A112.18.1
** Flow Rate is 3.5 Gallons per minute
Note: the Flow Rate is dependent upon the Main Supply Line and the water preasure to your building. Supply line should be any where fron 1" Dia. to 1.5 Dia.

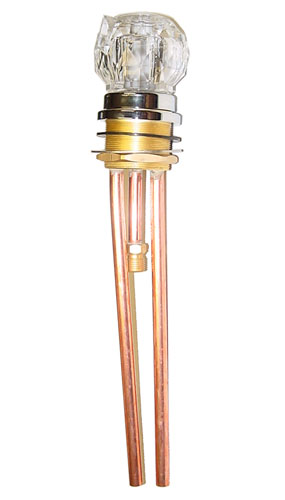

The most advanced single
control faucet made. Pull up for exact pressure desired. Dial the
temperature you like, left for Hot, right for Cold. Turn water on or
off without resetting. The #500 "Dial-Flo" has only one moving part.
* Fits Marble, MPC & Koken Shampoo Bowls
Note: Fixture Opening in Bowl must be a Minimum
of 1-3/4" and a Maximum of 2" to accommodate this fixture.

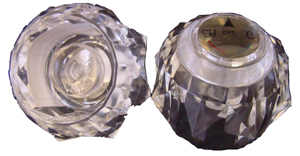

Handle for Dial Flo #500 Fixture * Handle Only *
Before June 2005
* Fits: Marble 500
"Dial-Flo" Single Handle Fixture made before June 2005
* Color: Crystal Clear
* Shape: Round Sides with Flat on top & Flat on Bottom
* Fastens on to fixture with Screw (included) under Cap (button)
* Fits Fixture made before June 2005
* Has 9 ridges where it fits onto stem
Marble Handle for Dial Flo #500
Fixture * Handle Only $ 19.99
Fixture Dial Flo #550 Fixture * Handle Only *
After June 2005
Handle with Cap (button) and
screw Only
* Fits: Marble 550 "Dial-Flo" Single Handle Fixture
* Color: Crystal Clear
* Shape: Round Sides with Flat on top & Flat on Bottom
* Fastens on to fixture with Screw (included) under Cap (button)
* When looking into the bottom of handle where the handle fastens onto
the fixture it is "DIAMOND SHAPE"
* Fits Fixture made After June 2005
* This Fixture is turned on by pushing the handle backwards and off by
pulling handle forward
* Fits "DIAMOND SHAPE" stem
Marble Handle for Dial Flo #550
Fixture * Handle Only $ 20.99
******************************************
MARBLE PRODUCTS Metal Chrome HANDLE FOR DIAL FLO 550 FIXTURE * HANDLE ONLY * Fits Fixture #550
Chrome Handle
* Fits: Marble 550 "Dial-Flo" Single Handle Fixture
* Color: Chrome
* Shape: Duck Bill ( makes it easy to turn off and on)
* Material: Metal
* Fastens on to fixture with Allen set Screw (included) under handle
* Screw coverd by Red / Blue button insert
* When looking into the bottom of handle where the handle fastens onto the fixture it is "DIAMOND SHAPE"
* Fits Fixture made After June 2005
* This Fixture is turned on by pushing the handle backwards and off by pulling handle forward
* Fits "DIAMOND SHAPE" stem
***** Now you have a choice between the original round crystal plastic handle or the Metal Chrome "Duck Bill" Shape handle
MARBLE PRODUCTS Metal Chrome HANDLE FOR DIAL FLO 550 FIXTURE * HANDLE ONLY $ 28.99
******************************************

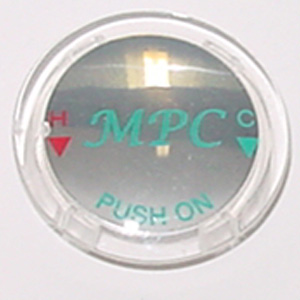

Fixture Dial Flo Handle Cap * Only
* Plug Button "top to
cover screw"
* Crystal Clear Plastic
* Fits #550 "Dial-Flo Faucet Handle
* Has "M P C" printed on button

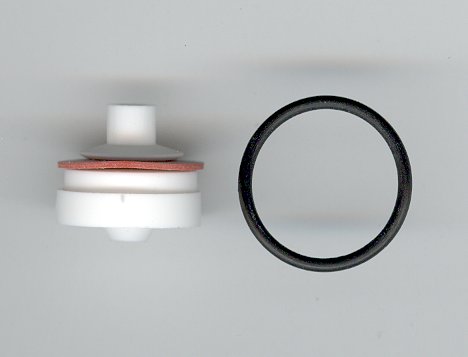

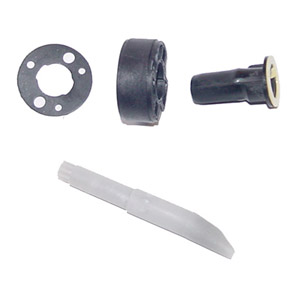

* "Leaky Faucet" this kit will replace
the wore parts in the
#500 "Dial-Flo" Faucet by Marble Products Co.

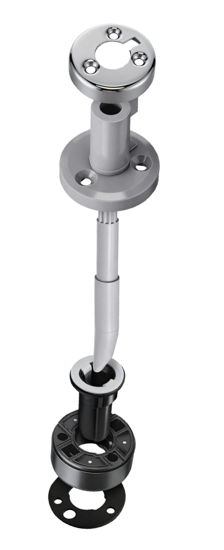

* Fits "Pull Up" to turn on water Fixture ( #500 fixture)
* Includes: Cam (Stem), Sleeve, Cartridge and Gasket
** Note to better confirm this cartridge
will fit your fixture check the Fixture Numbers found under the handle
stamped into chrome cap
"FILE # LM 30153"
PAT # 3,519,018
# 3,978,890
* Fits: Marble 500
"Dial-Flo" Single Handle Fixture
* Color: Gray Plastic
* Shape: 3/8" Round x 3-1/4" long with groves on one End for Handle
& Tapered on Bottom End
* Fits 500 Fixture
* Has 8 ridges where it fits onto stem
* Grey color cap part that fits over stem of cartridge kit * It will replace the worn part or "CRACKED" part that will not allow you to seal off cartridge.
* Fits the Pull Up (for on), Push Down (for off) Fixture (Marble Products Company(MPC) #500 fixture) * Includes: Cam Bearing ONLY
Why will you need this part? If you fixture is leaking around the base, then your Cam Bearing may be cracked and is allowing water to leak around the base of the fixture.
It is Recomended to that you replace the Cartridge (item # 000092641028500) at same time the Cam Bearing is replaced.
** Note to better confirm this cartridge will fit your fixture check the Fixture Numbers found under the handle stamped into chrome cap "FILE # LM 30153" * PAT # 3,519,018 * # 3,978,890
Fits #550 DIAL-FLO FAUCET BY Koken /
MARBLE PRODUCTS CO
* "Leaky Faucet" this kit will replace the wore parts in the
* Fits Push back to turn on & Pull forward to shut off Fixture
* Number printed on side of part "FL02GJ"
Dimensions:
* Overall Length with Stem up, measuring from top of stem to bottom of mounting points 2-5/16"
* Overall Diameter 1-7/16"
* Center to Center of the two Mounting Points 23/32"
* Inside fixture Mounting Height measuring from top of shoulder to bottom of mounting points 1-3/16"
* Mounting Point height 1/8" tall
* Stem Shoulder height 3/8"
* Stem Shoulder Outside Diameter 15/16"
* Stem Shoulder Inside Diameter 3/4"
* Stem height from Shoulder 3/4"
** Note Blue Cartridge is NO Longer Available
originally this fixture was made and sold with a BLUE color cartridge
That fixture has been Discontinued because it was found to be too
tight, it was hard to turn on and off.
If you have a fixture with a blue cartridge you will need to buy a
NEW FIXTURE.
*** The Green Cartridge shown here will
NOT fit your Blue Cartridge Fixture ***
$ 26.00 each
2 - 3 * $ 25.87 each
4 - 5 * $ 24.87 each
6 or more $ 23.91 each
Marble Fixture Cartridge Kit for
#550 Fixture
******************************************
Single Handle w/Pull-Out Faucet
Sprayer #800 Fixture
FIXTURE #800 Single Handle with
Pull-Out Faucet Sprayer
* with Built-In Vacuum Breaker and Sprayer/Spout
* Black Spray Head-Short on a Spiral Metal Hose
* Dual capability (spray or spout) Spray Head with rubber covered Button on top of spray head *
* Includes Mounting Hardware
Single Handle w/Pull-Out
Faucet Sprayer #800 Fixture $ 209.99
******************************************
Replacement Spray Head for Marble Fixture #800
* 3.5" Spray Head (Short)
* BLACK
* Dual capability (spray or spout) Spray Head with rubber covered Button on top of spray head
* Connects to pull out spiral hose
* Will ONLY fit Marble Fixture #800
Replacement Spray Head for Marble Fixture #800 $ 37.00
******************************************
Replacement Spiral Spray Hose for #800 Fixture
* Hose with male and female fittings
* Will ONLY fit Marble #800 fixture
* 48" long
Replacement Spiral Spray Hose for #800 Fixture $ 37.00
******************************************
Replacement Cartridge for Marble #800 Fixture
* For the Marble #800 fixture ONLY
* Color of Cartridge may vary from production to production
Replacement Cartridge for Marble #800 Fixture $ 32.00
Hose Receiver Cover Plate Hole
Cover
* Chrome Cover plate with rubber seal washer mounting bar and fastening
bolt.
* FITS: Marble Products, Jeffco, Collins and other brands Shampoo Bowls
* Chrome cover 3-1/4" x 2-3/4"
Outside Diameter
* As shown in lower left hand
corner of picture
* Rubber Gasket 3" x 2-1/2" inside x with a 3-1/8" x 2-7/8" Outside
* This is used when changing the fixture from a 2 handle fixture or a
single handle fixture to a #800 single handle fixture with pull out
spray head and built in Vacuum Breaker .
Therefore you do not need the
spray hose
receiver that this will replace.
If you do NOT Replace hose
receiver with this Hole Cover you will have a open hole in the hose
receiver where the spray hose would have come out of allowing water to
run thru to the floor !!!
* Fits: Marble Products Bowls #
100, 200, 2000, 3000w, 3000B, 4000, 300, 2001, and Fiberglass Bowls #
10 & # 30
** Look for the Model # on the Bottom of Bowl
** Will Also Fit Jeffco and Collins and other brands Shampoo Bowls
**** Will NOT Fit Belvedere
bowls !****
Note:
This item used mainly with the #800 Single Handle Fixture in the state
of Wisconsin
Includes: Vacuum Breaker, Chrome Plastic Hose Receiver, and Hose to connect Fixture to Vacuum Breaker
* Dimension of Chrome Plastic Hose Receiver 3-1/4" x 2-3/4"
* 1/4" measurement between inlet & outlet tubes
* Fits ALL MARBLE PRODUCTS (MPC) SHAMPOO BOWLS
* Also fits Collins, Jeffco, Kaemark, Pibbs, Belmont Shampoo Bowls
* Also Fits Some Old Belvedere #3800 Shampoo Bowls with "Butterfly" shape under hose receiver
* Universal Plumbing Code (UPC) ASSE 1001 Approved (Printed on top of cap)
* Canada Plumbing Code (CSA) B64.1.1 Approved (Printed on top of cap)
* Rated up to 125 PSI at 212 degree Fahrenheit water
* Inlet and Outlet tubes are 1/4" pipe thread nipples (standard for the industry)
UPC: 000092641001729
MPC: 1729
ASIN: B0002RSW6A
** This is a one way valve that saves the integrity of the fresh water system by Not allowing contaminate water ( water contaminated with perm solution, neutralizer, hair color and etc.) from mixing with the fresh water system that we all drink.
Consult your local plumber and building codes for need of this product.
$ 99.97 each / $ 98.97 when you buy 3 - 9 / $ 95.97 when you buy 10 or more
Vacuum Breaker
******************************************
# 086535017324
Marble Products Company
Los Angeles, California
Vacuum Breaker
Includes: Los Angeles Vacuum Breaker Hose Receiver and 22" Hose from Fixture to Breaker
* Dimension of Receiver 3-1/4" x 2-3/4"
* Fits ALL MARBLE PRODUCTS SHAMPOO BOWLS
* Also fits Collins Concept Bowl , Old Belvedere #3800 Bowl
* MPC No. 1732
* 6-3/4" Long Chrome Tubes
* Long Chrome Tubes needed to raise the Vacuum breaker above the top edge of bowl to meet Los Angeles County, California plumbing code
* Plumbing Code ASSE 1001 Approved (UPC) & (SA) (Printed on top of cap)
* 1/4" measurement between inlet & outlet tubes
** This is a one way valve that saves the integrity of the fresh water system by Not allowing contaminate water ( water contaminated with perm solution, neutralizer, hair color and etc.) from mixing with the fresh water system that we all drink.
Consult your local plumber and building codes for need of this product.
Marble Products Hose Receiver Kit for Marble
Vacuum Breaker
* Has 2 - 1/2" diameter Holes just left of the hose opening, to mount vacuum breaker
* Fastens to shampoo bowl with steel bar with bolt & thumb nut included
* Also included rubber gasket for each receiver and vacuum breaker
* Dimension of Receiver 3-1/4" x 2-3/4"
* Material: CHROME PLASTIC
* Color: Chrome
Note:This Hose Receiver has a Embedded Metal
Nut to fasten the bolt into the receiver when mounting it to the shampoo bowl. This makes it much STRONGER than the cheaper receiver plates on the market today, that their
bolt just screws directly into the plastic receiver, which strips out of the receiver plate,
thus not holding the receiver plate in place.
A loose Hose Receiver Plate will allow it to move and then water will leak underneath the bowl! The embedded Metal Nut
allows the Marble Products brand Hose Receiver to stay put when pulling the shampoo hose in and out of the receiver plate !!!
Cost a little more but you are "cutting hair" and makeing money instead of wasting time repairing your equipment !
** Fits: All Marble Products Company (MPC) Shampoo Bowls, Collins Concept and Jeffco Bowls and many other brands
Marble Hose Receiver Kit for
Marble Vacuum Breaker $ 28.99
******************************************
# 098268351132
Repair Kit
for Shampoo Bowl
Atmospheric Vacuum Breaker
:
Shampoo Bowl Vacuum Breaker Repair Kit
* Includes: Sealing Cap with Black O-Ring and White Plastic Valve with
Red Rubber Washer
* Fits: Marble Products, Jeffco, Collins, Koken, Takara, Belmont, Veeco, Kaemark, Keen, Savvy, SalonTuff, Wilkins, Zurn and many more brands atmospheric vacuum breakers
* Fits SOME Belvedere bowls (compare picture)
* Replaces working components of the sold brass vacuum breaker (why change the whole unit when only the working components can be changed with less money and less effort!)
* Name Tag on the top of Vacuum Breaker may have many different names (like: MPC No.1729) but the rating, like: 125 PSI and plumbing codes, like: ASSE 1001 (for the US) / CSA B64.1.1 (for Canada), Also stamped UPC (Uniform Plumbing Code) * The SIZE (1/4) denotes the size of the inlet and outlet tube size (1/4" dia.)
To replace:
Remove cap by take the two screws off top, remove Sealing Cap by unscrewing it counter clockwise, with a pair of neddle nose pliers remove (white) blackflow stopper. Reverse above to install new items. All can be done above shampoo bowl.
Note: This Style of Vacuum Breaker will leak water thru the top when the sealing cap gets old or the O-Ring is wore out. It will leak water thru the spray hose when the Hot & Cold Mixing Valve Fixture has a cartridge or gland assemby that is wore out or the Backflow Preventer (white part inside vaccum breaker) is wore out. This vacuum breaker will leak water out the top, if the Inlet and Outlet hoses are reversed (most common problem on new installation).
This is by far the MOST COMMON VACUUM BREAKER USED on Shampoo Bowls in the U.S.A.
This content is copyright "All rights reserved"
This picture is copyright "All rights reserved"
Repair Kit for Vacuum Breaker $ 24.50
******************************************

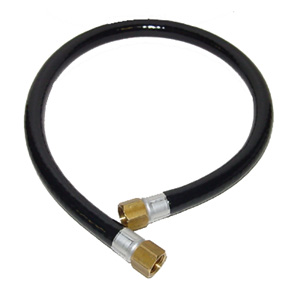

Connecting Hose for Marble Vacuum Breaker
This is the HOSE that
connects the Vacuum Breaker to the Fixture
The length is about 24" long with female couplings on each end
The hose is 3/8" inside diameter (ID) 250 PSI
May also need this adapter
to connect some shampoo bowl fixtures (with 1/2" male outlet) to the spray or vacuum breaker hose:
Connecting Hose for Above Marble
Vacuum Breaker $ 16.00
*******************************************
#000092628500002
Marble Products Company
Sof Flo II
Shampoo Hose
* Color: Black
* Length: 42 inches
* 1/4" Female connector screws on to Faucet / Fixture, Diverter or Vacuum Breaker
* with moveable rubber grommet around hose for drip ring
* Drip Ring allows the water that runs down the outside of hose to drip off inside shampoo bowl instead of dripping on floor under bowl.
* Fits: Marble Products Company (MPC), Belvedere, Belmont, Koken, Pibbs, Kaemark, Collins, Jeffco and AYC that have 1/4" output fitting (most common).
* Made in U.S.A.
UPC: 000092628500002
MPC: 1735
ASIN: B0002RTJFS
$ 17.99 each / $ 17.69 in lots of 2 / $ 16.99 in lots
of 3 or more
* Model #1701
* Prevents Hair from Clogging the Shampoo Bowl Drain
* Fits existing bowl drains
* Both Inlet & Outlet Fits Standard 1-1/2" Drain Pipe
* Replacement for "P" Trap, aka "J" Trap on drain pipe
* Color: Gray
* (UPC) Uniform Plumbing Code® Compliance
* Apply petroleum jelly to the threads of the Hair Trap Body to allow a tight seal and easier attachment/removal of the Filter/Handle Assembly
* Model #1701 * CLEAR *
* Prevents Hair from Clogging the Shampoo Bowl Drain
* Fits existing bowl drains
* Both Inlet & Outlet Fits Standard 1-1/2" Drain Pipe
* Replacement for "P" Trap, aka "J" Trap on drain pipe
* Color: Clear
* (UPC) Uniform Plumbing Code® Compliance
* Apply petroleum jelly to the threads of the Hair Trap Body to allow a tight seal and easier attachment/removal of the Filter/Handle Assembly
Was $ 68.00 each Now $ 56.97 each
****** Color: CLEAR ******** ONLY One (1) in stock
CLEAR Catch-All Hair Trap * ONLY One (1) IN STOCK
*******************************************
#10 MP Standard Shampoo Bowl, molded Fiberglass
* Includes: #550 CHROME handle fixture
(Pictured with old style Crystal Ball handle)
* Sof-Flo Shampoo Hose
* Hose Receiver Plate
* 3.5" Strainer Assembly
* Mounting Bracket and Mounting Instruction
** This Bowl can be Shipped by Air for addition charge, please call 870-972-5300 for air shipping quote
Black Shampoo Bowl with # 500 Fixture
$ 359.97
Gray Shampoo Bowl with # 500 Fixture $ 359.97
******************************************
Shampoo Bowl Hole Cover Fits: Marble Bowls
Hole Cover
* Chrome Cover plate with rubber seal washer and bottom washer with
wing nut fastener.
* Fits: Marble Products Man made Mable and Fiberglass Shampoo Bowls
* Chrome cover 1-3/4" Outside Diameter
* Rubber Gasket 1-7/16 inside Diameter with a 1-3/4" Outside Diameter
* This is used when changing the fixture from a 2 handle fixture to a
single handle fixture (May Need Two)
* May also need if you are taking off the diverter spout
* Fits: Marble Products Bowls # 100, 200, 2000, 3000w, 3000B, 4000,
300, 2001, and Fiberglass Bowls # 10 & # 30
** Look for the Model # on the Bottom of Bowls
* Fastens to shampoo bowl with steel bar, bolt & thumb nut (included)
* Also included rubber gasket for receiver (fits between receiver plate and bowl deck) * Dimension of Receiver 3-1/4" x 2-3/4"
* Material: CHROME PLASTIC
* Color: Chrome Note: This Hose Receiver has a Embedded Metal Nut to fasten the bolt into the receiver plate when mounting it to the shampoo bowl. This makes it much STRONGER than the cheaper receiver plates on the market today, their bolt just screws directly into the plastic receiver plate, which strips out of the receiver plate, thus NOT holding the receiver plate in place. A loose Hose Receiver Plate will allow it to move and then water will leak underneath the bowl! The embedded Metal Nut allows the Marble Products brand Hose Receiver Plate to stay put when pulling the shampoo hose in and out of the receiver plate !!! Cost a little more but you are "cutting hair" and makeing money instead of wasting time repairing your equipment !
** Fits: All Marble Products Company (MPC) Shampoo Bowls, Collins Concept and Jeffco Bowls and many other brands
The Jeffco 8300 Shampoo Bowl is the industry's original injection-molded plastic bowl. Because it's such a value, the 8300 is likely the industry's ALL-TIME BEST-SELLING shampoo bowl.
Includes: mounting bracket, 570 faucet, shampoo hose, hair strainer, drain assembly, and tail stock.
Size: 19" x 20" x 9 3/4"
Compliant with:
ANSI Z124.3 and Canadian CSA B45.0 & B45.5.
The 8300, in basic BLACK
Please check your City Code to see if a Vacuum Breaker is required.
Option:
The optional 388-ASC Vacuum Breaker is easily added.
Shipping JUST $39.77 !!!
( in the continental US )
Jeffco SHAMPOO BOWL * Black MSRP $ 340.00 $ 242.99
The 570 Chrome Single-Lever Faucet is rapidly becoming an industry standard because of it's performance, reliability, and value.
* The Original JEFFCO 570 Single Handle Fixture
* Fits: Jeffco, Collins, Marble Products, Kaemark and other brands of Shampoo Bowls
* Chrome Lever -Handle
* 24" flexible stainless steel supply lines with 1/4" Female Thread Ends making it a easy hook up and ideal for tilting shampoo bowls
* Ceramic cartridge (only moving part) insures long life
* May be used on shampoo bowls on wet booth units with lid, as the Height from sink to top of fixture is 4" when closed (6" when opened)
* UPC (Universal Plumbing Code) Meets ASME A112.18.1-2003
* Canadian CSA (Canadian Standards Association) Standard B125-01.
* IAPMO (International Association of Plumbing and Mechanical Officials) listed
* Fits any bowl, not just Jeffco bowls, and can be used as a replacement or UP-GRADED faucet on any bowl with mounting hole of 1 1/4" - 2 1/4" Diameter
** Flow Rate is 5 Gallons per minute
Note: the Flow Rate is dependent upon the main supply Line to your building. The main supply line should be any where from 1" diameter to 1.5" diameter.
* Fixture Opening in Bowl must be a Minimum of 1-1/4" and a Maximum of 2-1/4" diameter to accommodate this fixture
Dimensions:
* Overall Length with Stem up, measuring from top of stem to bottom of mounting points 2-9/16"
* Overall Diameter 1-9/16"
* Center to Center of the two Mounting Points 31/32"
* Inside fixture Mounting Height measuring from top of shoulder to bottom of mounting points 1-5/16"
* Mounting Point height 1/8" tall
* Stem Shoulder height 3/8"
* Stem Shoulder Outside Diameter 1"
* Stem Shoulder Inside Diameter 3/4"
* Stem height from Shoulder 7/8"
* Cartridge color will change in color from shipment to shipment
and the rubber gasket on bottom will change shape from round to rectangle from shipment to shipment
Jeffco Fixture Cartridge for
#570 Single Handle $ 39.99
******************************************
675410038174
JEFFCO Flexible Replacement Hoses
for #570 Single Handle Fixture
* for Hot and Cold Supply Lines *
* Two Hoses Only *
JEFFCO Replaceable Flexible Water Supply Hoses for #570 Single Handle Fixture
* Metal Flexible Water Supply Hoses
* Set of one (1) each Hot & Cold HOSES
* both Hoses measure 23" Long
* One with Red Strip for "Hot" inlet on fixture
* One with Blue Strip for "Cold" inlet on fixture
* Replacement Part
* Fits: Jeffco #570 Fixture Only
** 23" Long make them ideal for Backwash Shampoo Bowl Units !!!
JEFFCO Flexible Hoses for #570 Single Handle Fixture $ 39.97
******************************************
COLLINS / JEFFCO
Premium Deck Mount Shampoo Bowl
FIXTURE #532-BVD
Single Chrome Handle
* High Quality *
May be mounted to more recent Belvedere brand shampoo bowls (purchased after 2002)
MODEL: Collins / Jeffco 532-BVD Premium Faucet
* High Quality
* Chrome Lever -Handle
* ON: Push Back * OFF: pull Forward * Turn left and right: for hot / cold mixture
* Braided 14" Stainless Steel Hot and Cold Supply Lines with the Standard U.S. 3/8" Connectors !!!
* May be mounted to New (purchased after 2002) Belvedere Cast Iron Porcelain Bows that came with the New Belvedere 522 single handle fixture with chrome handle
* Also may be mounted to the Belvedere Acrylic Bowls model #2100 & model #2800 (to mount to bowl, use the included escutcheon ring)
* Fits all Jeffco and Collins Shampoo Bowl
* Fits many other brands of shampoo bowls, CHECK dimensions below
* Fixture Opening in Bowl must be a Minimum of 1-1/8" and a Maximum of 1-3/8" to accommodate this fixture
* The Standard Ring has 1/4" length of Threads (use on Collins / Jeffco and other brand bowls)
* Also included the Mounting Ring for porcelain cast iron bowls (for recent produced (purchased after 2002)) Belvedere bowls (Note: these bowls have a 1 fixture mounting hole)). The Ring has 3/8" length of Threads
* Meets ASME A112.18.1 and UPC Approved & CUPC Approved (Canada)
* This is a Low Profile Faucet: That means it can be used on most wet booth units so the lid will lay flat
* A ideal replacement fixture for the Belvedere 522 Fixture for those that want a Chrome handle that you push back to turn on and pull forward to turn off.
Replacement Cartridge: order part # 5001818
Customer Reviews:
by Willy:
In my 40 years of experiance I have never see a Better Fixture, You better buy Now ! before they go up in Price !!!
* Fixture Opening in Bowl must be a Minimum of 1-1/8" and a Maximum of 1-3/8" to accommodate this fixture
* Fits Belvedere cast iron porcelain shampoo bowls #3100, 3800, 8400K and 8600 that ** came with this fixture
* Also fits the Belvedere acrylic/ABS Shampoo Bowls model #2100 Omega & model #2800 Beta
** The model # 532 fixture will replace the 522 fixture that came on your Belvedere bowl.
It will not replace the single handle fixture with a "Tear Drop" shape plastic handle nor will it fit the Belvedere bowls with 2 handle fixture (see below for their replacement).
** Will NOT fit older Belvedere Bowls that have a single handle fixture with a "Tear Drop" shape plastic handle nor will it fit the Belvedere bowls with 2 handle fixture, for a replacement fixture for them Please See the Belvedere #622 fixture or Salon Tuff #338 fixture
The Older Belvedere Bowls with 3 holes have a thickness of about 1/2" which is to thick so the threads of this Collins / Jeffco #532 fixture will not come thru to fasten to the female threaded collar on the top of the fixture.
* Will NOT Replace the the Belvedere 622 single handle fixture with acrylic "tear drop shape" handle nor the two handle 112 or 4228 fixture that was used on Older Belvedere Cast Iron Porcelain Bowls with 3 mounting holes
******************************************
# 000067541000388
Jeffco Shampoo Bowl Vacuum Breaker
Includes: Vacuum Breaker,
Hose Receiver, and Hose to Fixture to Breaker
* Dimension of Receiver 3-1/4" x 2-3/4"
* Jeffco Brand
* National Plumbing Code Number: ASSE 1001
This is a one way valve that
saves the integrity of the fresh water system by NOT allowing
contaminate water (water contaminated with perm solution, neutralizer,
hair color, etc.) from mixing with the fresh water system that we drink.
Consult your local plumber
and building codes for need of this product.
Jeffco Shampoo Bowl Vacuum
Breaker $ 98.36
******************************************
Hose Receiver Kit for Jeffco Brand Vacuum Breaker
SHAMPOO BOWL PART: HOSE RECEIVER KIT for JEFFCO BRAND VACUUM BREAKER
* Has 2 - 1/2" Holes just left of the hose to mount vacuum breaker
* Fastens to shampoo bowl with steel bar with bolt & thumb nut included
* Also included rubber gasket for receiver and vacuum breaker
* Dimension of Receiver 3-1/4" x 2-3/4"
* Material: CHROME PLASTIC
* Color: Chrome
** UNIVERSAL PART:
This part will fit many brands such as: Belmont, Koken, Marble Products, Collins, Jeffco, AYC, Kaemark, Keen, Savvy, Veeco and some OLDER Belvedere bowls
Will this fit my shampoo bowl ?
Check dimensions and compare picture to yours.
Jeffco Hose Receiver Kit
for Jeffco Vacuum Breaker $
27.00 New Lower Price $ 23.99
******************************************
Hose Receiver Kit Plain for Jeffco Brand
* Fastens to shampoo bowl
with steel bar with bolt & thumb nut, Included
* Also included rubber gasket for receiver
* Dimension of Receiver 3-1/4" x 2-3/4"
* Material: CHROME PLASTIC
* Color: Chrome
Jeffco Hose Receiver Kit for
Jeffco Brand $ 23.99
******************************************
JEFFCO BRAND
COMPLETE 3-1/2"
STRAINER ASSEMBLY
(fits most shampoo bowls)
Industry's standard 3-1/2" diameter drain assembly with black hair strainer basket.
Fits all brand shampoo bowls with standard 3 1/2" hole for drain.

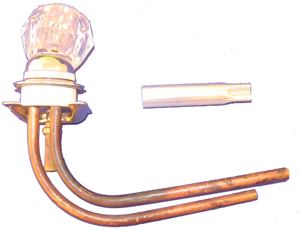

Jeffco Single Handle Fixture
#560 w/crystal Handle
Fits: Jeffco Shampoo Bowls
and Marble Products with Crystal Ball Style Handle
* Fixture Opening in Bowl must be a Minimum of 1-5/8" and a Maximum of
2-1/4" to accommodate this fixture
Jeffco
Single
Handle Fixture #560 with Crystal Handle
* Handle with Cap (button)
and screw Only
* Fits: Jeffco and Veeco Single Handle Fixtures that you push back to
turn on and pull forward to turn off
* Color: Crystal Clear
* Shape: Round 8 Pointed Diamond Shape Sides with Flat on top &
Flat on Bottom
* Fastens on to fixture with Screw (included) under Cap (button)
* When looking into the bottom of handle where the handle fastens onto
the fixture it is "DIAMOND SHAPE"
* Fits Jeffco Fixture and Veeco Fixture used on shampoo bowls
* Fits "DIAMOND SHAPE" stem
* Dimension: 2-5/8" across from point to point x 2" Tall
** Handle ONLY ! **
Jeffco/Veeco Handle with Cap and
Screw $ 24.99
******************************************
FIXTURE #201 AYC Single Handle
* Chrome
* Fits:
Jeffco, AYC and Marble Products Shampoo Bowls
Single Handle Shampoo Bowl Water Fixture
* Fits: Jeffco, AYC and Marble brand Shampoo Bowls
* Short Chrome Lever - Handle Extends out 1-3/8" from fixture
* Overall Dimension Above Deck Mount 2" Dia. x 4" Tall
* Fixture Opening in Bowl must be a Minimum of 1-3/8" and a Maximum of 1-3/4" to accommodate this fixture
* One - 1/4" pipe thread tube on bottom of fixture to connect the Spray Hose
* Two - 1/2" female pipe thread to connect the Hot & Cold water supply lines. ( This is one of three standard size in U.S. plumbing and you may need to reduce to connect to your supply line, you may have a reducer on your present supply line (that you can reuse) or your plumber will have or will be able to get the parts locally to connect the supply lines.) ALL FIXTURES require this type of connections because size and length will Vary from shop to shop.
* Meets ASME A112.18.1-2003/ CSA B 125-01
* Plumbing Code ASSE 1001 and Approved (UPC) (Printed on top of cap)
* 180 degree F maximum hot water
* 125 PSI maximum PSI
* Size: 1/4"
* 1/4" measurement between inlet & outlet tubes
Includes: Vacuum Breaker, inlet tube, outlet tube, two mounting washers, two mounting nuts, Hose Receiver Plate, receiving plate mounting bolt, wing nut with metal mounting plate and cross over connecting hose.
This Economy Universal Vacuum Breaker
* Fits: Jeffco, AYC and Marble brand Shampoo Bowls and many many
more shampoo bowls !!!
Will this fit your shampoo bowl ?
If your hose receiver opening on your shampoo bowl measures 1/8" to 1/4" smaller than this hose receiver it will fit !
* Dimension of Hose Receiver 3-1/4" x 2-3/4"
***************
Economy Universal VACUUM BREAKER Complete $ 69.99
******************************************
DRAIN ASSEMBLY
for TILTING SHAMPOO BOWL
** REPLACEMENT PART ! **
** DRAIN ASSEMBLY for TILTING SHAMPOO BOWL UNIT
* Fits AYC: Aron, Mette, Conti & Estelle Tilting Shampoo Units and Many, Many More Brands (Check Dimension)
* ASSE-1001
* UPC approved
* Overall Dimensions: 4-5/16 Dia. Inlet ring (Top), 1-13/16" Dia. Outlet ring (Bottom)
* Overall Height: 3-1/2" High
* Off WHITE PLASTIC Mounting Threads: 3-7/16" Dia. X 1-9/16 High
* Off White Plastic Mounting Threads held in place by 4 spot welded lugs
* Throat opening 7/16" will accommodate bowl thickness up to 7/16"
* Stainless Steel Outlet Thread count (6) measuring: 17/32" High
* Fits Standard White 1-1/2" Flex Drain Pipe
* Drain Assembly includes: Stainless Steel Drain Plug with rubber seal for tight seal, 2-1/2" Dia. Stainless Steel Strainer Cup with wire handle measuring 1-7/8" High, (2) Rubber Washers one for inside bowl the other under bowl, (1) Off White Plastic Mounting Nut & (1) 1-1/2" Rubber Flex Drain Washer
** Will not fit Belvedere brand
* Will this fit your shampoo bowl ?
Compare your to dimensions listed here.
Compare yours to picture !!!
** REPLACEMENT PART ! ** DRAIN ASSEMBLY for TILTING SHAMPOO BOWL UNIT $48.97
******************************************
VEECO
Single Handle
Shampoo Bowl
Faucet / Fixture AR550
New Veeco brand replacement
Faucet / Fixture AR550
* Single handled
* Chrome
* Fits most bowls
* 3/8" compression fittings to supply. 1/4 mpt fitting to shampoo hose. * * Fits: Veeco, Jeffco, AYC , Marble Products, and
* Fits most Belvedere (Measure Opening) Shampoo Bowls
* Short Chrome Lever - Handle Extends out 1-3/8" from fixture
* Overall Dimension Above Deck Mount 2" Dia. x 3" Tall
* Fixture Opening in Bowl must be a Minimum of 1-3/8" and a Maximum of 1-3/4" to accommodate this fixture
Single Handle Shampoo Bowl Faucet / Fixture AR550 $ 124.99
******************************************
Shampoo Bowl BLACK RUBBER Sprayer Hose with Black Spray Head
* Hose 46 inches long x 1/2" Female x 1/4" Female * * Dual capability (spray or spout) Spray Head with rubber covered Button on top of spray head *
* Hose: 46" x 1/2" Female x 1/4" Female
* Black Rubber finish
* Black Rubber Hose glides easily thru hose opening in the standard hose receiver
* Color: Black
* Material: Rubber Hose with metal couplings
* Length: 46"
* 1/2" Female coupling on one end (to attach Spray Head (NOT included))
* 1/4" Female coupling on the other end (to attach hose to fixture)
* Black SPRAY HEAD
* Spray Head has button on top (under a black rubber cover) on the Top
* Push Button Dual capability functions as sprayer or a spout
* Single piece construction makes this Rubber hose is a Better Quality than the metal hose! ** It will last longer!
* Net Weight: 0.75 lbs
** Hose May Also be Used with Shampoo Bowl Sprayer Head # 672419200980 or as shown # 926410800019 extras maybe purchased separate
Note when used with standard Hose receiver plate (like Marble Products Chrome Hose Receiver plate item # 000092641001000 or # 1000 or # 1729-CRC) the 1/4" Female coupling will go thru the hole for the hose in the hose receiver allowing the 1/4" female coupling on the hose to connect to the fixture.
** Note may need Brass Adaptor item #61205200050126
purchased separate (see Below)
Shampoo Bowl BLACK RUBBER Sprayer Hose with Black SPRAY HEAD
* 46 inches long x 1/2" Female x 1/4" Female * Dual capability Black Spray Head fo spray or spout $ 59.75
* 46" x 1/2" Female x 1/4" Female
* Black Rubber finish
* Black Rubber Hose glides easily thru hose opening in the standard hose receiver
* Color: Black
* Material: Rubber Hose with metal couplings
* Length: 46"
* 1/2" Female coupling on one end (to attach Spray Head (NOT included))
* 1/4" Female coupling on the other end (to attach hose to fixture)
* Net Weight: 0.50 lbs
* This Rubber hose is a Better Quality than the metal hose! ** It will last longer!
Note when used with standard Hose receiver plate (like Marble Products Chrome Hose Receiver plate item # 000092641001000 or # 1000 or # 1729-CRC) the 1/4" Female coupling will go thru the hole for the hose in the hose receiver allowing the 1/4" female coupling on the hose to connect to the fixture.
** Note may need Brass Adaptor item #61205200050126
purchased separate (see Below)
Shampoo Bowl BLACK RUBBER Sprayer Hose
* 46 inches long x 1/2" Female x 1/4" Female $ 39.75
Low flow, high pressure sprayer head with metallic hose
* 3 ft long x 1/2" Female x 1/4" Female *
* 36" x 1/2" Female x 1/4" Female
* Chrome finish
* Universal style for maximum compatibility
* Kink-Free
* Spiral Hose
* Length: 36"
* 1/2" Female coupling on one end (to attach Spray head)
* 1/4" Female coupling on the other end (to attach hose to fixture)
* Net Weight: 0.461 lbs
Note when used with standard Hose receiver plate (like Marble Products Chrome Hose Receiver plate item # 000092641001000 or # 1000 or # 1729-CRC) the 1/4" Female coupling will go thru the hole for the hose in the hose receiver allowing the 1/4" female coupling on the hose to connect to the fixture.
** Note may need Brass Adaptor item #61205200050126
purchased separate (see Below)
Low flow, high pressure sprayer head with metallic hose
* 36 inches long x 1/2" Female x 1/4" Female $ 45.99
* 42" x 1/2" Female x 1/4" Female
* Chrome finish
* Universal style for maximum compatibility
* Kink-Free
* Spiral Hose
* Length: 42"
* 1/2" Female coupling on one end (to attach Spray head)
* 1/4" Female coupling on the other end (to attach hose to fixture)
* Net Weight: 0.461 lbs
Note when used with standard Hose receiver plate (like Marble Products Chrome Hose Receiver plate item # 000092641001000 or # 1000 or # 1729-CRC) the 1/4" Female coupling will go thru the hole for the hose in the hose receiver allowing the 1/4" female coupling on the hose to connect to the fixture.
** Note may need Brass Adaptor item #61205200050126
if your faucet outlet end is 1/2" male threads (purchased separate). (see Below)
Shampoo Bowl Chrome finish METAL Spiral Hose
* 42 inches long x 1/2" Female x 1/4" Female $ 39.99
******************************************
BRASS ADAPTOR
* 1/2"Female to 1/4"Male thread *
for Shampoo Hose or Vacuum Breaker
to connect to Shampoo Bowl Fixture with 1/2" male outlet
Size: 1/2" Female thread to 1/4" Male thread
* All Brass coupler/adaptor
* Brass Adaptor used ONLY to connect any 1/2" Male Thread outlet on a fixture to any 1/4" Female Spray Hose End such as a Heavy Duty Metal Flexible Shampoo Hose (item # 61205200020228) or a Connecting Hose for a Vacuum Breaker to Fixture.
* This is a special part that is use to connect the 1/4' Female spray hose connection to the 1/2" Male fitting of the shampoo bowl's fixture (mixing valve)
* or to connect the Connecting (cross over) Hose for a Vacuum Breaker to shampoo bowl Fixture (mixing valve) that has 1/2" male outlet. * THIS ITEM IS NON-RETURNABLE
** Use with Heavy Duty Metal Flexible Shampoo Bowl Spray Hose # 61205200020228 or Any Standard Shampoo Hose with a 1/4" Female coupling. (purchased separate)
Definition Note:
* Male Threads are on the outside of the pipe
* Female Threads are inside the pipe or fitting
BRASS ADAPTOR * 1/2"Female to 1/4"Male thread $ 7.97
******************************************
Shampoo Bowl Sprayer Hose Heavy Duty
* 42" x 1/2"F x 1/2"F
* Chrome finish
* Universal style for maximum compatibility
* Kink-Free
* Heavy Duty Spiral Hose
* Length: 42"
* with 1/2" Female coupling on each end
* Net Weight: 0.461 lbs
* Size: 1/2" male thread to 1/4" female thread
* All Brass coupler/adaptor
* Brass Adaptor used ONLY to connect Heavy Duty Metal Flexible Shampoo Hose (item # 672419020120) to Fixture or Vacuum Breaker
* This is a special part that is use to connect the 1/2' Female spray hose connection to the 1/4" Male fitting of the shampoo bowl's fixture (mixing valve) or the shampoo bowl's vacuum breaker
* THIS ITEM IS NON-RETURNABLE
** Use with Heavy Duty Metal Flexible Shampoo Bowl Spray Hose # 672419020120
purchased separate(Shown Above)
One(1) Brass ADAPTOR $ 7.97
******************************************
Shampoo Bowl SPRAYER HEAD Chrome with Button on side
* Dual capability functions as sprayer and spout
* Chrome finish
* Universal style for maximum compatibility
* Replaces combo-function spray-head
* Net Weight: 0.17 lbs
Use with Shampoo Bowl Spray Hose # 672419020120
purchased separate(shown Above)
Shampoo Bowl SPRAYER HEAD Chrome with Button on side $ 36.00
CacheBeauty.com
528 Fixture with Spout
