    Parts: Marble Vacuum Breaker



Marble Products Company
Vacuum Breaker KIT
FITS: Most Shampoo Bowls

Includes: Vacuum Breaker, Chrome Plastic Hose Receiver, and Hose to connect Fixture to Vacuum Breaker

* Dimension of Chrome Plastic Hose Receiver  3-1/4" x 2-3/4"
* 1/4" measurement between inlet & outlet tubes
* Fits ALL MARBLE PRODUCTS (MPC) SHAMPOO BOWLS
* Also fits Collins, Jeffco, Kaemark, Pibbs, Belmont Shampoo Bowls
* Also Fits: Belvedere Shampoo Bowls

* This will REPLACE the Belvedere model 403 Vacuum Breaker


* Universal Plumbing Code (UPC)  ASSE 1001 Approved (Printed on top of cap)
* Canada Plumbing Code (CSA) B64.1.1 Approved (Printed on top of cap)
* Rated up to 125 PSI at 212 degree Fahrenheit water
* Inlet and Outlet tubes are 1/4" pipe thread nipples (standard for the industry)

UPC: 000092641001729
MPC: 1729


** This is a one way valve that saves the integrity of the fresh water system by Not allowing contaminate water ( water contaminated with perm solution, neutralizer, hair color and etc.) from mixing with the fresh water system that we all drink.
Consult your local plumber and building codes for need of this product.

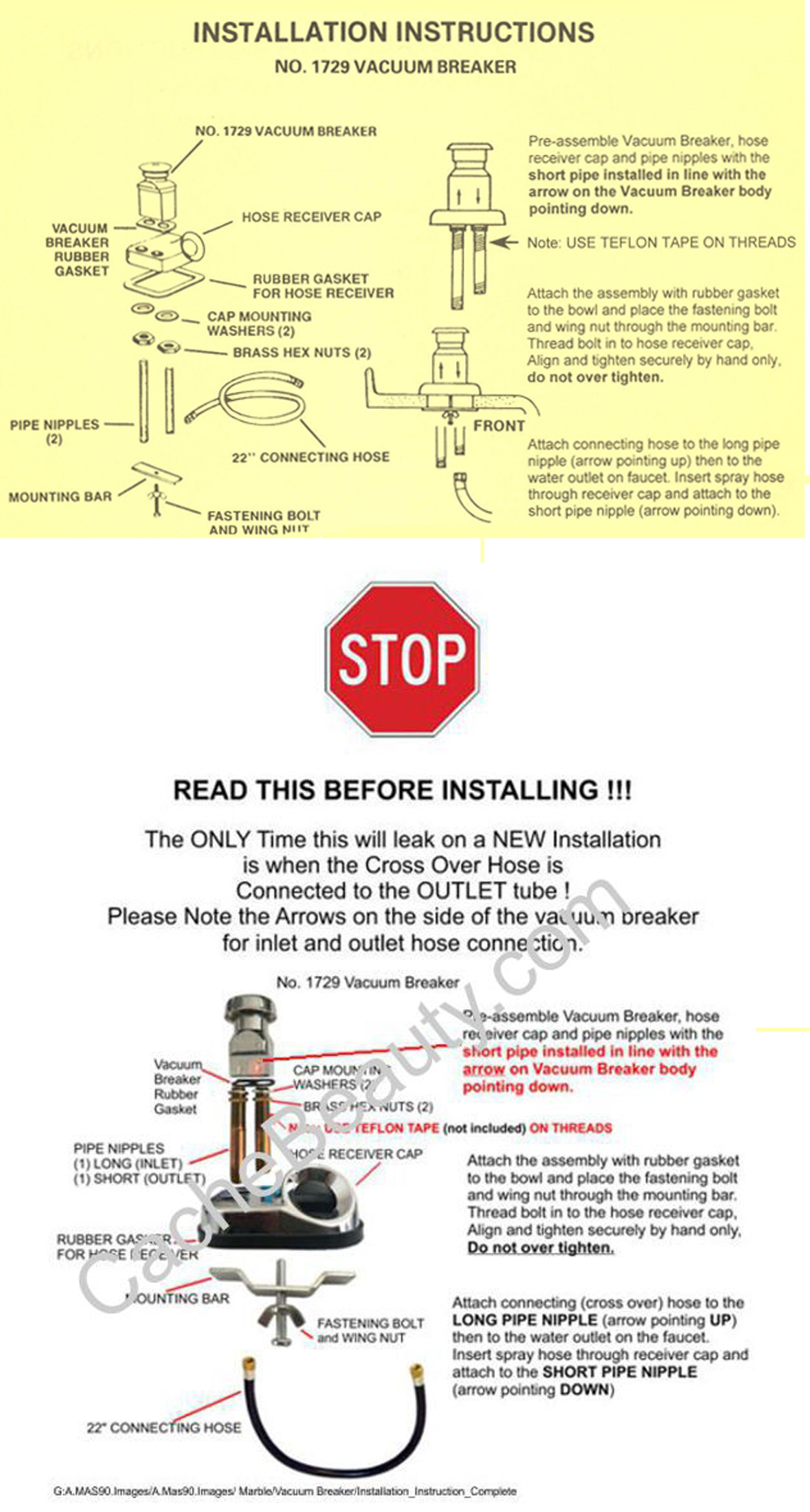

Click Here for Installation Sheet



Manufacturer's Price:   $ 145.99



$ 127.97 each  /  $ 125.99 in lots of 3  /  $ 123.97 in lots of 10 or more
MARBLE PRODUCTS Company (MPC) Vacuum Breaker KIT  # 1729



---------------------------------------------------------------------------------



Marble Products Company
Vacuum Breaker * ONLY *
FITS: Most Shampoo Bowls

Includes: Vacuum Breaker, and Connecting Hose (use to connect Fixture to Vacuum Breaker)

* Includes: Connecting Hose (use to connect Fixture to Vacuum Breaker)
* 1/4" measurement between inlet & outlet tubes
* Fits ALL MARBLE PRODUCTS (MPC) SHAMPOO BOWLS
* Also fits Collins, Jeffco, Kaemark, Pibbs, Takara Belmont Koken Shampoo Bowls
* Universal Plumbing Code (UPC)  ASSE 1001 Approved (Printed on top of cap)
* Canada Plumbing Code (CSA) B64.1.1 Approved (Printed on top of cap)
* Rated up to 125 PSI at 212 degree Fahrenheit water
* Inlet and Outlet tubes are 1/4" pipe thread nipples (standard for the industry)



** Mainly used to replace Deck Mounted vacuum breaker that has the hose receiver moded into the bowl's deck.
* Can be used to replace vacuum breaker that uses a hose receiver to mount to bowl's deck. (as like shown in above kit)
* It is always recomended to replace the connecting hose when changing out the vacuum breaker. (They both wear-out about the same time)

UPC: 926410172987
MPC: 1729-VB


** This is a one way valve that saves the integrity of the fresh water system by Not allowing contaminate water ( water contaminated with perm solution, neutralizer, hair color and etc.) from mixing with the fresh water system that we all drink.
Consult your local plumber and building codes for need of this product.

Click Here for Installation Sheet



Manufacturer's Price:   $ 132.99



$ 126.99 each
MARBLE PRODUCTS Company (MPC) Vacuum Breaker  #1729-VB ONLY with Connecting Hose



---------------------------------------------------------------------------------



# 086535017324

MPC # 1732LA

Marble Products Company
Locations that Plumbing Codes require it to be used:
Los Angeles, California
States of: OR, Oregon, CA, California, WA, Washington and WI, Wisconsin
Vacuum Breaker






Includes: Los Angeles Vacuum Breaker Hose Receiver and 22" Hose from Fixture to Breaker
* Dimension of Receiver  3-1/4" x 2-3/4"
* Fits ALL MARBLE PRODUCTS SHAMPOO BOWLS
* Also fits Collins Shampoo Bowls, Belvedere Shampoo Bowls
* MPC No. 1732LA
* 6-3/4" Long Chrome Tubes
* Long Chrome Tubes needed to raise the Vacuum breaker above the top edge of bowl to meet Los Angeles County, California plumbing code
* Also meet the States of OR, Oregon, Washington and Wisconsin plumbing code
* Consult your local plumber and building codes for need of this product.
* Plumbing Code  ASSE 1001 Approved (UPC) & (SA) (Printed on top of cap)
* 1/4" measurement between inlet & outlet tubes




** This is a one way valve that saves the integrity of the fresh water system by Not allowing contaminate water ( water contaminated with perm solution, neutralizer, hair color and etc.) from mixing with the fresh water system that we all drink.
Consult your local plumber and building codes for need of this product.



* TO BE USED FOR Los Angeles, California, States: Oregon, Washington and Wisconsin



Click Here for Installation Sheet



Marble Los Angeles, Calif. and States: Oregon, Washington and Wisconsin: Vacuum Breaker #1732LA $ 158.99



---------------------------------------------------------------------------------




# 098268351132





Repair Kit
for Shampoo Bowl
Atmospheric Vacuum Breaker




:



Shampoo Bowl Vacuum Breaker Repair Kit
* Includes: Sealing Cap with Black O-Ring and White Plastic Valve with
Red Rubber Washer
* Fits: Marble Products, Jeffco, Collins, Koken, Takara, Belmont, Veeco, Kaemark, Keen, Savvy, SalonTuff, Wilkins, Zurn and many more brands atmospheric vacuum breakers
* Fits SOME Belvedere bowls (compare picture)
* Replaces working components of the sold brass vacuum breaker
(why change the whole unit when only the working components can be changed with less money and less effort!)
* Name Tag on the top of Vacuum Breaker may have many different names (like: MPC No.1729) but the rating, like: 125 PSI and plumbing codes, like: ASSE 1001 (for the US) / CSA B64.1.1 (for Canada), Also stamped UPC (Uniform Plumbing Code) * The SIZE (1/4) denotes the size of the inlet and outlet tube size (1/4" dia.)

UPC: 098268351132
MPC: 1729-RK
ASIN: B000270BGE


To replace:
Remove cap by take the two screws off top, remove Sealing Cap by unscrewing it counter clockwise, with a pair of neddle nose pliers remove (white) blackflow stopper. Reverse above to install new items. All can be done above shampoo bowl.

Note: This Style of Vacuum Breaker will leak water thru the top when the sealing cap gets old or the O-Ring is wore out. It will leak water thru the spray hose when the Hot & Cold Mixing Valve Fixture has a cartridge or gland assemby that is wore out or the Backflow Preventer (white part inside vaccum breaker) is wore out. This vacuum breaker will leak water out the top, if the Inlet and Outlet hoses are reversed (most common problem on new installation).

This is by far the MOST COMMON VACUUM BREAKER USED on Shampoo Bowls in the U.S.A.


This content is copyright "All rights reserved"
This picture is copyright "All rights reserved"





Repair Kit for Vacuum Breaker  $ 24.50



---------------------------------------------------------------------------------



# 671021010011

Marble Products Hose Receiver Kit for Marble Vacuum Breaker

* Has 2 - 1/2" diameter Holes just left of the hose opening, to mount the vacuum breaker
* Fits shampoo bowls: Marble Products Company, MPC, Collins, Jeffco, Belvedere and many others (Check Dimension)
* Mounting hardware included: steel bar with bolt & thumb nut
* Also included rubber gasket for the inlet and outlet tubes of the vacuum breaker
* Also included rubber gasket for the bottom of the deck mount hose receiver
* Dimension of Receiver 3-1/4" x 2-3/4"
* Material: CHROME PLASTIC
* Color: Chrome


Note: This Hose Receiver has an Embedded Nut to fasten the bolt into the receiver when mounting it to the shampoo bowl. This makes it much STRONGER than the cheaper receiver plates on the market today, that their bolt just screws directly into the plastic receiver, which strips out of the receiver plate, thus not holding the receiver plate in place.

A loose Hose Receiver Plate will allow it to move and then water will leak underneath the bowl!  The embedded  Nut
allows the Marble Products brand Hose Receiver to stay put when pulling the shampoo hose in and out of the receiver plate !!!
Also note the two tubes on the receiver plate that the copper inlet and outlet pipes fit down into to install the vacuum breaker,
makes the hose receiver much stronger than the cheaper receiver plates that
are on the market today that installed the vacuum breaker tubes by just bolt-up to the bottom of the top of the receiver plate.
thus allows the vacuum breaker to break loose from the hose receiver plate !!!
Cost a little more but you are "cutting hair" and makeing money instead of wasting time repairing your equipment !



** Fits: All Marble Products Company (MPC), Belmont, Collins, Jeffco and many other brands Shampoo Bowls (Check Dimension)



Marble Product Company (MPC) Hose Receiver Kit for Vacuum Breaker   $ 32.99



---------------------------------------------------------------------------------



Connecting Hose for Marble Vacuum Breaker

This is the HOSE that connects the Vacuum Breaker to the Fixture
The length is about 24" long with female couplings on each end
The hose is 3/8" inside diameter (ID) 250 PSI



Connecting Hose for Above Marble Vacuum Breaker  $ 16.00
