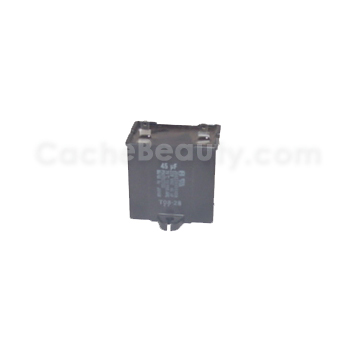

BELMONT Hydraulic Pump PART:
CAPACITOR (Condenser)
for #180 or E4C Electric Hydraulic Pump

The Takara Belmont / Koken Hydraulic Pump PART: CAPACITOR (Condenser)
* This electrical device may "burn out" over time and will need to be replace
** Item MAY BE SHAPED DIFFERENT than what is on your chair
* New part is Square or Rectangle as your old part may have been round in shape so you may need to adjust the mounting of this item as it may be a different shape than what was originally on your pump
** Printed on side of capacitor: 45 uF
JSU22X456AOA
220 VAC 45uF
70 degree C 10 000AFC
PROTECTED
50/60 Mz
T08-28
* Case Size: 1-3/8" x 2" x 1-7/8"
* Two (2) Terminals
* fits Belmont Koken #180 or E4C Electric Hydraulic Pump
* Special Order Part
* Reference: Part # 109 in Picture
* Please allow 3 - 10 days to ship and 3 - 7 days to deliver

*** THIS ITEM IS NON-RETURNABLE ***




Capacitor (Condenser) for #180 or E4C Electric Hydraulic Pump $ 36.50




*****************************************





BELMONT Hydraulic Pump PART:

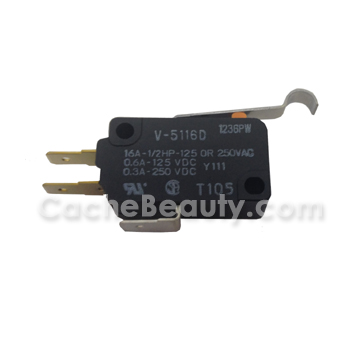

MICRO SWITCH
for #180 or E4C Electric Hydraulic Pump



The Takara Belmont / Koken Hydraulic Pump PART: MICRO SWITCH
* This electrical device may "ware out" over time and will need to be replace
* Printed on side of switch: V-5116D 1236PW
16A - 1/2HP - 125 OR 250VAC
0.6A - 125 VDC
Y111
.03A - 250 VDC
T105



* Casing Dimension: 5/8" tall X 1-3/16" wide X 3/8" deep
* Has two (2) holes thru the case in two opposite corners for which to mount switch, each hole is approximately 1/8" Dia
* Has Three (3) TERMINALS
* fits Belmont Koken #180 or E4C Electric Hydraulic Pump
* Special Order Part
* Reference: Part # 128 in Picture
* Please allow 3 - 10 days to ship and 3 - 7 days to deliver

*** THIS ITEM IS NON-RETURNABLE ***




Micro Switch for #180 or E4C Electric Hydraulic Pump $ 36.50




*****************************************





# 09826805401320

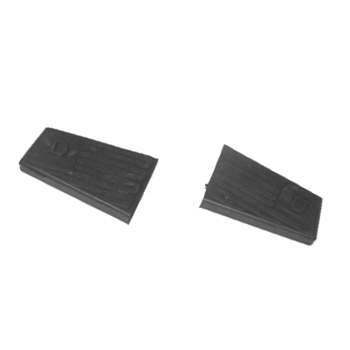

BELMONT Hydraulic Pump PART:
RUBBER PEDAL COVER (Up & Down)
for #180 or E4C Electric Hydraulic Pump



BELMONT Hydraulic Pump PART:
The Takara Belmont / Koken Hydraulic Pump PART: Pair RUBBER PEDAL COVERS (1 - Up & 1 - Down)
* This is a Rubber Tread used on the up & down foot peddles (both are the same)
* one side has a "U" in the rubber for "UP" the other side has a "D" in the rubber for "DOWN"
* fits Belmont / Koken #180 or E4C Electric Hydraulic Pump
* Reference: Part # P99120A & P99121A in picture they fit on the metal pedals # 120 & 121
* Measures: 1/2" thick x 3-1/2" long x 2-1/4" tapering down to 1-1/2"
* slot on the 2-1/4" end to slide Rubber Pad over metal pedal
* Often 6 pair in stock but if out of stock or more needed then Please allow 3 - 6 days to ship then 3 - 7 days to deliver
* 1 - Pair (2 rubber pads)

*** THIS ITEM IS NON-RETURNABLE ***





Rubber Pedal Cover (UP & DOWN)

for #180 or E4C Electric Hydraulic Pump * Pair $ 29.97





******************************************





BELMONT E4C Hydraulic Pump PART:

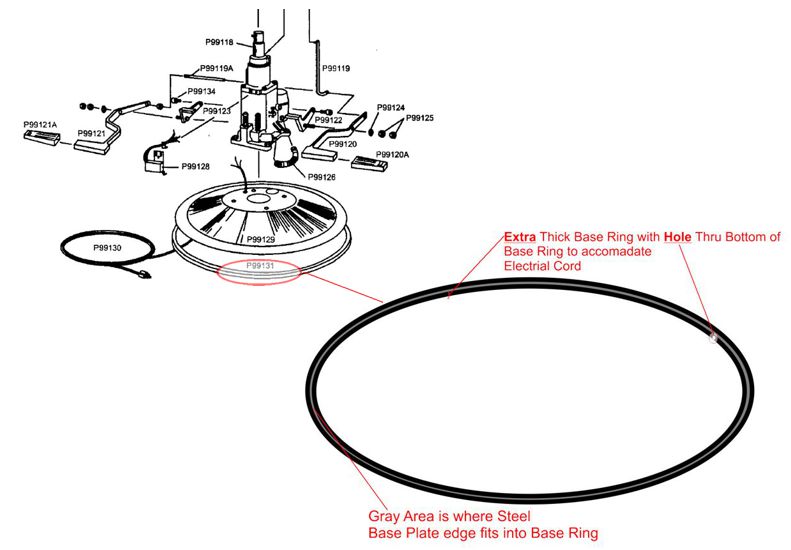

BLACK RUBBER BASE RING









09826816991315



* The Takara Belmont / Koken Hydraulic Pump PART:  BASE RING * RUBBER BLACK BASE RING for E4C Electric Base
* fits Belmont / Koken #180 or E4C Electric Hydraulic Pump
* Reference: Part # P99131 as in schematic
* Fits on outer edge of metal base plate, slot on the inside diameter to slide Rubber Base Ring over Meta Base
* Measures: 1.0" thick  x  23-3/4" Diameter (74-15/16" circumference)
* Often one (1) in stock but if out of stock or more needed then Please allow  3 - 6 days to ship then 3 - 7 days to deliver
* 1 - only Rubber Black Base Ring


*** THIS ITEM IS NON-RETURNABLE ***

Note:
No other Base Ring will fit this base because they are Not Thick enough to accomadate the electrical cord !



BELMONT E4C Hydraulic Pump PART:BLACK RUBBER BASE RING $ 87.97






**********************************************





BELMONT Hydraulic Pump PART:
CONTROL LEVER (LEFT)
for #180 or E4C Electric Hydraulic Pump


The Takara Belmont / Koken Hydraulic Pump PART: CONTROL LEVER (LEFT) part #P99123 as shown in diagram Above
* This is a Steel casting part that attaches to the Pump Housing and the Down Pedal (Left #P99121)
* This part "Pushes the Down Valve (#P99127) down allowing the shaft (chair) to lower
* fits Belmont / Koken #180 or E4C Electric Hydraulic Pump
* Reference: Part # P99123 in picture
* Approximate Measurements: 1/4" thick  x  4" long  x  2"  wide  x 1-3/4" tall
* Special Order Part: often 1 piece in stock but if out of stock or more need then Please allow  14 days to ship then 3 - 7 days to deliver
* 1 - Only Steel Part

*** THIS ITEM IS NON-RETURNABLE ***

Why will you need this part ?
Answer:  After years of use all steel castings will just ware out or break, and will need to be replaced.




BELMONT Hydraulic Pump PART:CONTROL LEVER (LEFT)

for #180 or E4C Electric Hydraulic Pump $ 78.50





************************************





BELMONT Hydraulic Pump PART:

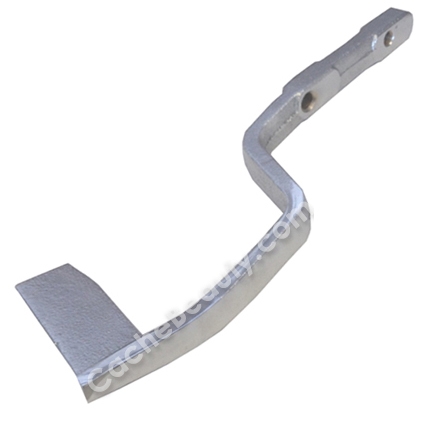

DOWN PEDAL (Left)
for #180 or E4C Electric Hydraulic Pump

Takara BELMONT Hydraulic Pump PART:
* DOWN PEDAL (Left)
* This is a Chrome Steel Pedal with threaded hole on one end and bolt hole (in center of this part) that is used to connect the Control Lever (Left) (part #P99123 in picture).
* Part has foot tread on one end to slide on the Rubber Pedal Tread Cover (part #P99121A in picture ** (Cover Not Included))
* Approximate Dimension: 13" long x 3-3/4" wide x 7/8" tall x 5/8" thick
* The two (2) holes (one threaded one not) measure 3-5/16" center to center
* fits Takara Belmont / Koken #180 or E4C Electric Hydraulic Pump
* Special Order Part
* Reference: Part # P99121 in Picture
* Often 1 piece in stock but if out of stock or more need then Please allow 14 days to ship then 3 - 7 days to deliver
* 1 - Only Steel Part

*** THIS ITEM IS NON-RETURNABLE ***

Why will you need this part ?
Answer: After years of use all steel castings will just ware out or break, and will need to be replaced.



BELMONT Hydraulic Pump PART:DOWN PEDAL (Left)

for #180 or E4C Electric Hydraulic Pump $ 137.50





************************************





BELMONT Hydraulic Pump PART:

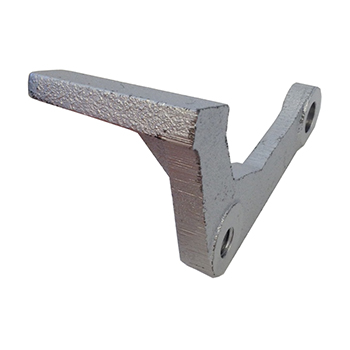

CONTROL LEVER (RIGHT)
for #180 or E4C Electric Hydraulic Pump




The Takara Belmont Koken Hydraulic Pump PART: CONTROL LEVER (RIGHT) part
#P99122 as shown in diagram Above
* This is a Steel casting part that attaches to the Pump Housing and the Up
Pedal (Right #P99120)
* This part "Pushes the micro switch (#P99128) down allowing the shaft
(chair) to raise
* fits Belmont / Koken #180 or E4C Electric Hydraulic Pump
* Reference: Part # P99122 in picture
* Approximate Measurements: 1/4" thick  x  4" long  x  2"  wide  x 1-3/4"
tall
* Special Order Part: often 1 piece in stock but if out of stock or more
need then Please allow  14 days to ship then 3 - 7 days to deliver
* 1 - Only Steel Part

*** THIS ITEM IS NON-RETURNABLE ***

Why will you need this part ?
Answer:  After years of use all steel castings will just ware out or break,
and will need to be replaced.



BELMONT Hydraulic Pump PART: CONTROL LEVER (RIGHT)

for #180 or E4C Electric Hydraulic Pump $ 78.50





********************************





BELMONT Hydraulic Pump PART:

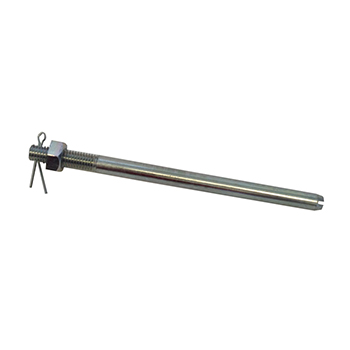

CONNECTING BAR
for #180 or E4C Electric Hydraulic Pump




The Takara Belmont / Koken Hydraulic Pump PART: CONNECTING BAR part #P99119
as shown in diagram Above
* This is a Steel Rod part that attaches to the Lock Lever (part #P99116) on
the top and to the Up Pedal (part #P99120) on the bottom
* This part locks the shaft in place Not Allowing the chair to turn
* fits Belmont / Koken #180 or E4C Electric Hydraulic Pump
* Reference: Part # P99119 in picture
* Approximate Measurements: 1/4" thick  x  4" long  Steel Rod
* Nuts and Fasters may be included
* Special Order Par
* Often 1 piece in stock but if out of stock or more need then Please allow
14 days to ship then 3 - 7 days to deliver
* 1 - Only Steel Part

*** THIS ITEM IS NON-RETURNABLE ***

Why will you need this part ?
Answer:  After years of use all steel parts will just ware out or break, and
will need to be replaced.


BELMONT Hydraulic Pump PART: CONNECTING BAR

for #180 or E4C Electric Hydraulic Pump $ 39.50





*************************************************





BELMONT E4C Electric Hydraulic Pump PART:

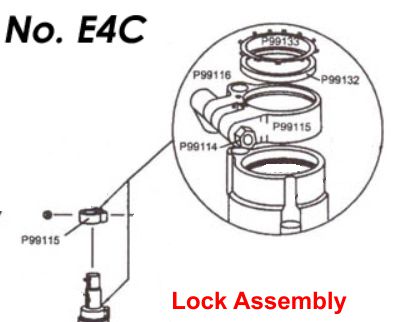

CAST IRON LOCK
_ Shaft Lock _

Item # 09826805401153



The Takara Belmont / Koken E4C Electric Hydraulic Pump PART: Cast Iron Lock * shaft lock
* fits Belmont Koken #180 or E4C Electric Hydraulic Pump
* This Cast Iron Shaft Lock will some time break or may "ware out" over time and will need to be replace
* Appoximate Dimension: 1.5" tall  X  1-27/64" ID  X   2-1/4" OD
* Description: Cast Iron with bolt on the outer edge that squezes tight against the shaft to keep shaft from turning when lock is engaged, keeps the chair seat from turning.

* So few sold makes this a SPECIAL ORDER PART!
* Reference: Part # P99115 in Picture

* Includes parts: P99114 Lock-Adjusting Nut  and  P99116 Lock Lever
* Please allow  2 - 4 days to ship then 3 - 7 days to deliver

*** THIS ITEM IS NON-RETURNABLE ***


You may also need parts: FELT RING # 09826805401405, No. shown in picture is P99132 and the RETAINING RING Reference, No. shown in picture is Part #P99133




BELMONT E4C Electric Hydraulic Pump PART:CAST IRON LOCK

_ Shaft Lock _ $ 198.78





*************************************************

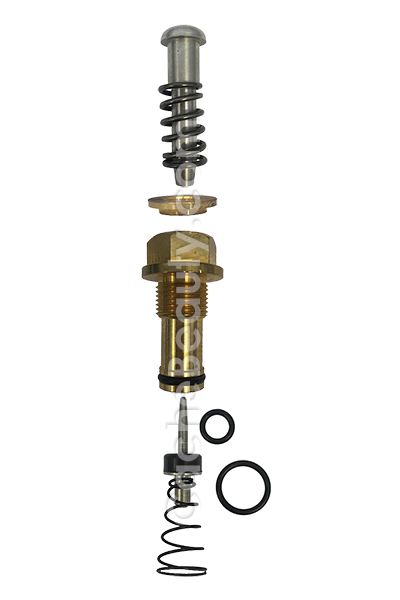

BELMONT Electric Hydraulic Pump PART:
DOWN VALVE
Reference: Part #P99127 in Picture for #180 or E4C Electric Hydraulic Pump





DOWN VALVE $ 48.75



* This Valve device may "ware out" over time and will need to be replace
* Consist of (8) Components in a bag: Brass Body with O-Ring on small end,  Large Full Length Pin, Brass Seat Ring, Small Plunger Pin with Rubber Bumper, Large Spring, Small Taper Spring, Large O-Ring & Small O-Ring
* fits Belmont Koken #180 or E4C Electric Hydraulic Pump
* Reference: Part # P99127 in Picture
* Often (1) in stock but if out of stock or more need then Please allow  14 days to ship

*** THIS ITEM IS NON-RETURNABLE ***



***************************************************************

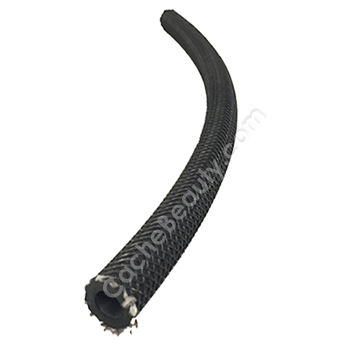

BELMONT Electric Hydraulic Pump PART:
INTAKE HOSE
Reference: Part #P99126 in Picture for #180 or E4C Electric Hydraulic Pump



INTAKE HOSE $ 18.50



* This Hose may "ware out" over time and will need to be replace
* Consist of (1) Rubber Hose
* Approximate Size: 1/4" ID  x 1/2" OD  x  9" Long
* fits Belmont Koken #180 or E4C Electric Hydraulic Pump
* Reference: Part # P99126 in Picture
* Often (1) in stock but if out of stock or more need then Please allow  14 days to ship

*** THIS ITEM IS NON-RETURNABLE ***



*************************************

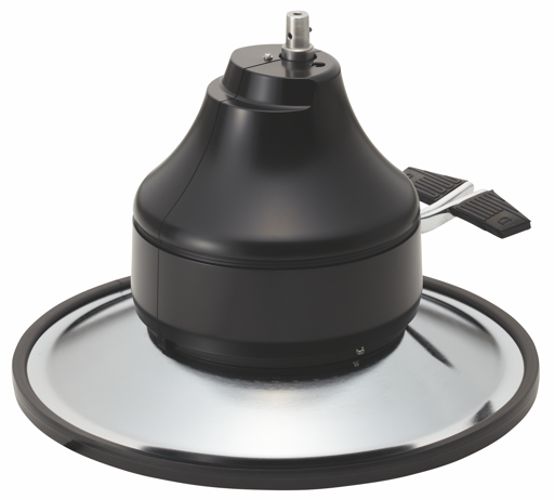

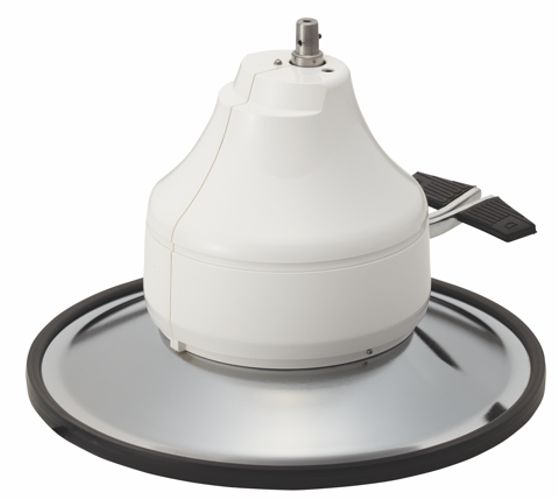

Takara Belmont / Koken
Classic E
Electric Hydraulic Base


"New for 2017"

* Complete Electric Hydraulic Base ONLY !

* Basically everything from the bottom of the seat down.
* Includes, BS-BCE Hydraulic Pump, Base Plate is Brush Chrome with Black Rubber Base Ring
* Pump Cover is available in Black, Silver or White
* Replacement Hydraulic Base for the discontinued E4C electric Pump
* Fits ONLY Takara Belmont / Koken Chair (mostly barber chairs)
* MPC: Black pump cover BS-BCEB, White pump cover BS-BCEW & Silver pump cover BS-BCES


* Price shown plus Shipping Cost to your location

** Also NOTE:
Since the Complete Replacement Electric Hydraulic Base will be drop-shipped from Belmont, Belmont will collect state sales tax in states they have a presence in.

If this is the case, we will contact you before shipping to confirm total cost.
Known states included are
CA, CT, FL. GA, IL, KY, MD, MA, MN, MO, NJ, NY, NC, OH, PA, TX, WA

Special Order item !!!
Please allow 3 - 10 Days to ship then delivered in 3 - 10 Business Days

*** THIS ITEM IS NON-RETURNABLE ***


Black item # 0982682195024





White item # 0982682195239







Silver item # 0982682195192

* The Silver May NOT be available!!!






(MSRP) Manufacturer's Suggested Retail Price $ 1,680.00

Price:
$ 1,260.00



Specifications:
Hydraulic base and pump cover
Base Plate: Brush Chrome with Black Rubber Base Ring
Voltage:  120V
Power Rating: 50/60 Hz
Current:  5.6/3.7 A
Diameter: 24"
Height: 16"
Stroke: 8"





*********************************************************************************
