    Salon Chair Parts: Hydraulic Pump Repair Info 4'' Pump



Belvedere Hydraulic Pump TOP COVER CASTING ASSEMBLY

for 4 X4 hydraulic Pump

Fits Belvedere brand standard hydraulic base
On Belvedere Hydraulic Pump there should be a serial number tag on the front of the cap that covers the workings of the pump.  The serial number should start with  "RD" or "LB" or "CB" ( like: CB12C-KV93063 )
If you can not find the tag, you are welcome to e-mail me a photo of the base at
customerservice@CacheBeauty.com  Attn: Bill


* This part may fit other name brand seat pumps but the seat manufactuer must be in the U.S.

*** Fits 4" O.D. Standard Hydraulic Pump

Fits Belvedere brand standard hydraulic base
May fit other brand names ***  4" O.D. Standard Hydraulic Pump
This PART consists of the following parts:
* Cover Casting part # HLP- 4002-4,
* Top Seal for 5/8" Plunger Pin - part # HLP-4032
* 5/8" Plunger Pin - part # HLP-4033
* 5/8" Plunger Pin Ring - part # HLP-4034

** Special Order Part **
Please allow 10 - 18 days to ship then 3 - 7 days to deliver on UPS

*** THIS ITEM IS NON-RETURNABLE ***

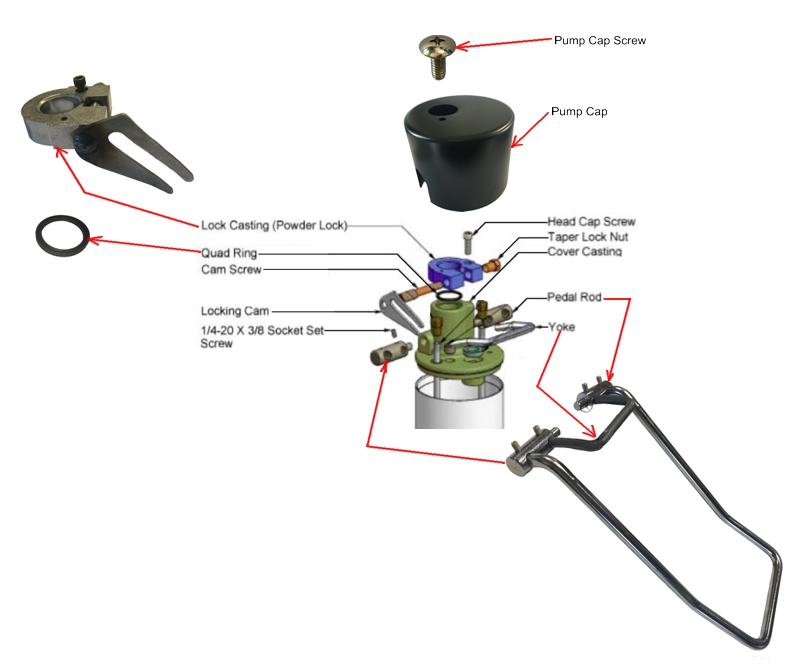

See schematic for this pump on this web page ABOVE:

This Top Cover Casting is recognized by its (4) Stud Bolt holes on the top that holds this Top Cover Casting to the bottom casting

Note:
If replacing this part you will also need the Belvedere Hydraulic Pump ''O'' Ring Rebuild Kit for 4'' Pump, item #021020010329

*** THIS ITEM IS NON-RETURNABLE ***



Belvedere Hydraulic Pump TOP COVER CASTING ASSEMBLY

for 4 X4 hydraulic pump $ 117.77



Belvedere Hydraulic Pump BOTTOM CASTING ASSEMBLY

for 4 X4 hydraulic pump

Fits Belvedere brand standard hydraulic base
On Belvedere Hydraulic Pump there should be a serial number tag on the front of the cap that covers the workings of the pump.  The serial number should start with  "RD" or "LB" or "CB" ( like: CB12C-KV93063 )

If you can not find the tag, you are welcome to e-mail me a photo of the base at
customerservice@CacheBeauty.com  Attn: Bill

* This part may fit other name brand seat pumps but the seat manufactuer must be in the U.S.

*** Fits 4" O.D. Standard Hydraulic Pump

Fits Belvedere brand standard hydraulic base
May fit other brand names ***  4" O.D. Standard Hydraulic Pump
This PART consists of the following parts:
* Bottom Casting part # HLP- 4001-4
* Plunger Sleeve - part # HLP-5505H
* Plunger Plug - part # HLP-5515
* Plunger O-Ring - part # HLP-5584
* Pump Plug Ball - part #HLP-5517
* Pump Plug Spring part # HLP-5516
* Pump Plug Spring Hld part # HLP-5518
* Pipe Plug part # HLP-5540
** Special Order Part **  Please allow 10 - 18 days to ship then 3 - 7 days to deliver on UPS
*** THIS ITEM IS NON-RETURNABLE ***


See schematic for this pump on this web page ABOVE:

This Bottom Casting is recognized by its (4) Stud Bolt Threaded Holes on the inside that the stud bolts (not included) theads into that holds this Top Cover Casting to the bottom casting. Also the Threaded Holt Holes on the Bottom that will hold on the Base Plate (not included)



Belvedere Hydraulic Pump BOTTOM CASTING ASSEMBLY

for 4 X4 hydraulic pump $ 118.86



SALON CHAIR 5-1/2" O.D. HYDRAULIC PUMP STEM ASSEMBLY




This is the Part that includes the "Shaft" (STEM) the part that protrudes out the top of the pump and attaches to the bottom of the chair seat.
* Includes: Complete HLP-5506HPA Stem.
* this is the working part of the pump.

** Why this part needs to be replaced:
???????????????? Really is the Stem needed to be replace, unless it has been damaged on either end. The other parts (on the lower end of the Stem) do need to be changed out and some times is betther to buy this Stem Assembly if you do not have the tools to properly change-out the U-Cup HLP-5509 as the
HLP-5581 Sel-Loc Spring pin is hard to remove and replace.

* This NEW and improved Stem (as of 01/01/2024) will fit on the older 5-1/2" O.D., 4-1/2" O.D., 4" O.D. & Belvedere 4 X 4 Hydraulic Pumps Hydraulic pumps
* It has been so hard to replace the U-Cup in the field that it is now just easier to replace the Stem.

* Fits Collins, Jeffco, Veeco, Kaemark and 4 X 4 Belvedere brand Heavy Duty Hydraulic Pumps
* May fit others but the chair seat manufacure must be a U.S. manufacture

*** Fits ONLY USA made Pumps, 5-1/2" O.D., 4-1/2" O.D., 4" O.D. & Belvedere 4 X 4 Hydraulic Pumps

Please allow 1 - 2 weeks to ship

*** THIS ITEM IS NON-RETURNABLE ***



SALON CHAIR 5-1/2" O.D. HYDRAULIC PUMP STEM ASSEMBLY $ 87.97


**********************************

item # 021020010329

Belvedere Hydraulic Pump
"O" Ring Rebuild Kit
for 4" pump



Fits Belvedere brand standard hydraulic base
On Belvedere Hydraulic Pump there should be a serial number tag on the front of the cap that covers the top workings of the pump. The serial number should start with  "CB" ( like: CB12C-KV93063 ) or "RD"  model pumps

If you can not find the tag, you are welcome to e-mail me a photo of the base at
customerservice@CacheBeauty.com Attn: Bill

* This part may fit other name brand seat pumps but the seat manufactuer must be in the U.S.

* This Repair Kit ONLY fits a U.S.A. made Hydraulic Pump.

*** Fits: Belvedere 4" O.D. Standard Hydraulic Pump (To see if your pump is a 4.0" O.D. (outside diameter) then measure across the top of the pump next to the shaft that goes into the bottom of the seat)

* Also fits Belvedere Electric Pump model # 2EC
If you can not find the tag, you are welcome to e-mail me a photo of the base at
customerservice@CacheBeauty.com  Attn: Bill

This KIT consists of the following parts:
* Two O-Ring, casting - part # HLP-4030-4
* One Top Seal for 5/8" pin - part # HLP-4032
* One U-cup - part # HLP-5509
* One Quad Ring - part # HLP-5512
* One O-Ring for socket tube (top) - part # HLP-5554
* One O-Ring for bottom of socket tube (has a yellow dot on it) - part # HLP-5587

*** Please Note:
Replace HLP-5554 & HLP-5587 O-Rings only if the Socket Tube is removed


Note:
Replacement Hydraulic Fluid should be a ISO Grade 46.
The U.S. manufacture uses and recommends SHELL TURBO® ISO viscosity grade T 46
Amount oil need for this pump:  1 Pints





Pump Repair Info and Schematics

*** THIS ITEM IS NON-RETURNABLE ***



Belvedere Hydraulic Pump ''O'' Ring Rebuild Kit for 4'' Pump $ 51.77






**********************************



item # 607021055097

Belvedere Hydraulic Pump
"U" CUP only
for 4" pump



Fits Belvedere brand standard hydraulic base
On Belvedere Hydraulic Pump there should be a serial number tag on the front of the cap that covers the top workings of the pump. The serial number should start with  "CB" ( like: CB12C-KV93063 ) or "RD"  model pumps

If you can not find the tag, you are welcome to e-mail me a photo of the base at
customerservice@CacheBeauty.com Attn: Bill

* This part may fit other name brand seat pumps but the seat manufactuer must be in the U.S.

* This Part ONLY fits a U.S.A. made Hydraulic Pump.

*** Fits: Belvedere 4" O.D. Standard Hydraulic Pump (To see if your pump is a 4.0" O.D. (outside diameter) then measure across the top of the pump next to the shaft that goes into the bottom of the seat)

* Also fits Belvedere Electric Pump model # 2EC
If you can not find the tag, you are welcome to e-mail me a photo of the base at
customerservice@CacheBeauty.com  Attn: Bill

Discription

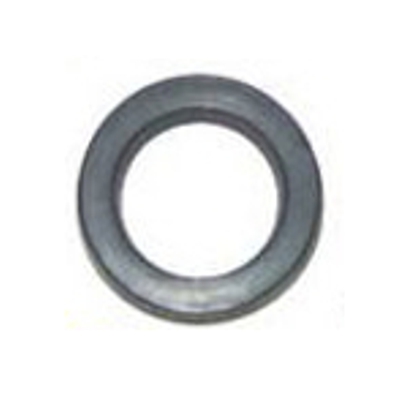

* One U-cup - schematics part # HLP-5509
* Hydr Pump Part: U-Cup
* for 3-1/2", 4", 4-1/2" & 5-1/2" O.D. Pumps Prior to 2020
* 1.0" I.D. X 1-1/2" Outside Dia. X 0.25" Tall Rubber "U" Shape O-Ring Cup
* Material: RUBBER
* Fits Collins, Kaemark and Many other brands Heavy Duty Hydraulic Pumps
* Also fits Belvedere 4 X 4 Hydr * 4" pump (same as 4" above)
* FITS: U.S. Made Hydraulic Pump ONLY


Note:
Replacement Hydraulic Fluid should be a ISO Grade 46.
The U.S. manufacture uses and recommends SHELL TURBO® ISO viscosity grade T 46
Amount oil need for this pump:  1 Pints





Pump Repair Info and Schematics

*** THIS ITEM IS NON-RETURNABLE ***



Belvedere Hydraulic Pump Part ''U-Cup'' Rubber Ring for 4 inch Pump $ 11.97



**********************************



Belvedere
Hydraulic Pump
* FOOT PEDAL (TREADLE) *
Fits Belvedere 4X4 Hydraulic Pump


This "Foot Treadle" is also known as "Foot Pedal & Lock Rod Assembly" and the "U-Bail"



Broken Foot Treadle !!!
COMING SOON A RETRO FIT KIT TO GET YOUR PUMP BACK UP AND GOING !!!


Note: this Foot Treadle was made by Belvedere to be used exclusively on the 4" OD pump
Since Belvedere is out of business we have a Foot Treadle that can be retro fited to your pump!!!

Item # 60702120086620

Fits Belvedere standard 4" OD hydraulic pump (4 X 4)
* Measurement across top of pump should measure 4" for this part to fit:


To confirm part, you are welcome to e-mail a photo of the pump and broken Foot Pedal (Treadle) to customerservice@CacheBeauty.com Attn: Bill


* This part will fit the CB12BC, CB12FC, RD12BC, RD12FC, RD12CC, 2BC, 2EC & 2CC Hydraulic Pumps that are used on many style seats of Belvedere.
(Look for WHITE production tag afixed to the bottom of the seat.)
*** Fits 4" O.D. (4X4) Standard Hydraulic Pump

Shape and material:

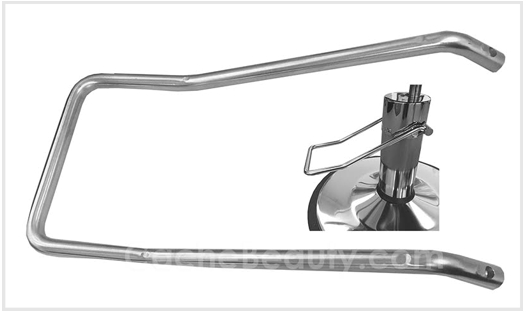

* 1/2" round, "Oval" Shape, chrome steel rod
* Has a set screw hole drilled in top of each end to fasten Treadle on to pump

* Overall Dimensions: 15" Wide X 11-1/2" Long
* SHAPE: 4" to first bend (appoximately 45 degree bend), then 2" to next bend (appoximately 45 degree bend), then 4-1/2" to the next bend (appoximately 90 degree), then a sweeping curve of 4-1/2" to the longest straight section of 10-1/2", thena sweeping curve of 4-1/2" to the next bend (appiximately 90 degree), then 4-1/2" to the next bend (appoximately 45 degree bend), then 2" to next bend (appoximately 45 degree bend), then 4" to other end.
* this Pedal fits Belvedere Hydraulic Pumps Only that are made in the USA for the 4" OD (measure accross the top of the pump) models.
Has a 1/4" X 4" Steel Rod welded across bar 3" from the ends.
This par is ALL CHROME

** Special Order Part **
Please allow 7 - 18 days to ship then 3 - 10 days to deliver on UPS

*** THIS ITEM IS NON-RETURNABLE ***



Note:
If replacing this part you may also need the
2 - Set Screw
s


*** THIS ITEM IS NON-RETURNABLE ***

***


Belvedere Hydraulic Pump * FOOT PEDAL (TREADLE)

* Fits Belvedere 4X4 Hydraulic Pump * Currently unavailable. * $ 143.97   (2022 price)



************************************************************************************



Replacement Kit for the
Belvedere FOOT PEDAL (TREADLE)
Fits Belvedere 4X4 Hydraulic Pump

Item # 6070210404503

Fits Belvedere standard 4" OD hydraulic pump (4 X 4)
* Measurement across top of pump should measure 4" for this Kit to fit:


The "Foot Treadle" is also known as "Foot Pedal & Lock Rod Assembly" and the "U-Bail"



Belvedere Broken Foot Treadle !!!
This is A RETRO FIT KIT TO GET YOUR Belvedere PUMP BACK UP AND GOING !!!


Note: The Belvedere Foot Treadle was made by Belvedere to be used exclusively on the 4" OD pump
Since Belvedere is out of Business we have a Foot Treadle that can be retro fited to your pump!!!


Note: You will need to be somewhat mechanical inclined to replace the parts.
Instructions will be included in Kit.


*** THIS ITEM IS NON-RETURNABLE ***



Change-Out KIT for Belvedere Hair Salon Hydraulic Pump * FOOT PEDAL (TREADLE)

* Fits Belvedere 4X4 Hydraulic Pump * Includes 13 Pieces  $ 189.97




************************************************************************************

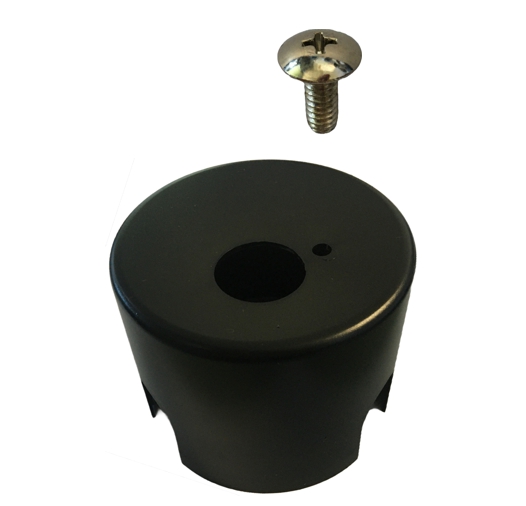

OR REPLACE THE HYDRAULIC PUMP with the 4-1/2" O.D. * Pump Only


************************************************************************************



Salon Chair Hydraulic REPLACEMENT Pump for 4-1/2" O.D. * Pump Only
* Also Replaces Belvedere 4X4 Hydraulic Pump * Pump Only

Item # 00607020045006

Replaces Belvedere standard 4" OD hydraulic pump (4 X 4)
* Measurement across top of your pump it should measure 4" for this pump to fit:


* This Pump replaces ONLY U. S. A.. Made 4.0" O.D. and 4-1/2" O.D. Hydraulic pump that is only used on 23" Round Base Plate like: Collins 23" dia. Round Base

* Both this 4-1/2" D.O. and the 4.0" O.D. pump have the SAME BOLT HOLE PATTERN to bolt on to the Base Plate or the Belvedere 5-Star Base

* Fits Collins, Jeffco, Veeco, Kaemark, Belvedere, Belmont and many other brands

* This is a U.S. A. Made pump!

* Chrome Finish

* This is JUST the pump. No hardware or base plate.

* You will need to reuse the Cap & Screw, shaft's roll pin and Foot Treadle & 23" dia. Round Base Plate, or Belvedere's 5-Star Base

** NOTE: Belvedere's Foot Treadle(Pedal) will NOT fit this pump!

** You will need to purchase a New Foot Treadle (Pedal) and a New Cap with Screw

* Please send picture of pump being replaced to: customerservice@cachebeauty.com (1) one or more pictures of under the top cap showing the top of the pumps workings, complete pump base and under base plate showing the bolt hole pattern.

* Pump MUST measure 4.0" O.D. or 4-1/2" (4.5") OD across the pump (under cap).

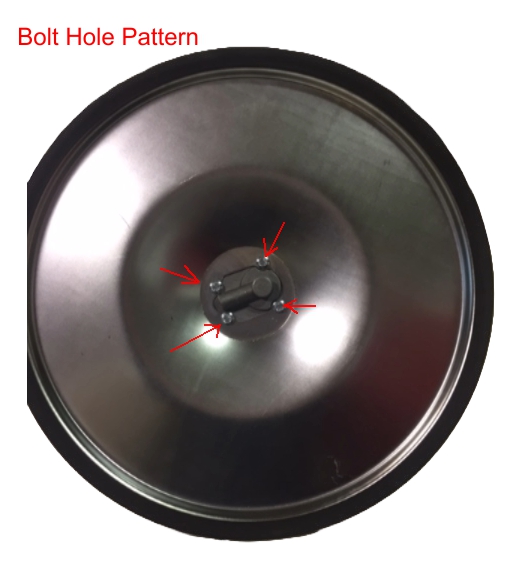

* For bolt hole orientation the back of the pump is where the foot tread (peddle) is located.

* The four 5/16" bolt holes in bottom of casting are used to bolt pump to base plate.

* The two bolt holes in the front of bottom measure 2-7/16" from (center to center of bolt holes).

* The two bolt holes in the back of the bottom measure 1-11/16" from (center to center of bolt holes).

* Again both this 4-1/2" D.O. and the 4.0" O.D. pump have the SAME BOLT HOLE PATTERN to bolt on to the Base Plate

or the Belvedere's 5-Star Base.

* Over all Height of pump measures 14-3/4" from the very bottom of slump on pump to the top of the shaft (shaft in lowest down position).

* NOTE: Molded into the Bottom of Pump casting is "Made in USA"

* Pump ONLY !

*** THIS ITEM IS NON-RETURNABLE ***

Please allow 3 - 14 days to ship and 3 - 10 days to deliver

* Item can only be shipped on UPS GROUND

* Price shown + Shipping cost to your location



Salon Chair Hydraulic REPLACEMENT Pump for 4-1/2" O.D. * Pump Only

* Also Replaces Belvedere 4X4 Hydraulic Pump * Pump Only   $ 243.99




Item # 00607020045006

Item # 607021045531

Item # Cap and Screw
