    Salon Chair Parts: Hydraulic Pump Repair Info





*******************************************



607021045999

Salon Chair 4-1/2" O.D. Standard Hydraulic base Pump REPAIR KIT * Fits: COLLINS, Jeffco, Kaemark, & Other Brands


* Fits Collins, Jeffco and Kaemark brand Standard Hydraulic Base Pump
* May fit others

* This Repair Kit is for U.S.A. made hydraulic pump Only !

*** 4-1/2" O.D. Hydraulic Pump Repair Kit (To see if your pump is a 4-1/2" O.D. (outside diameter) then measure across the top of the pump next to the shaft that goes into the bottom of the seat)

This KIT consists of the following parts:
* Two O-Ring for spacer tube - part # HLP-4530
* One Top Seal for 5/8" pin - part # HLP-4032
* One U-cup - part # HLP-5509
* One Quad Ring - part # HLP-5512
* One O-Ring for socket tube (top) - part # HLP-5554
* One O-Ring for bottom of socket tube (has a yellow dot on it) - part # HLP-5587


*** THIS ITEM IS NON-RETURNABLE ***

Note:
Replacement Hydraulic Fluid should be a ISO Grade 46.
The U.S. manufacture uses and recommends SHELL TURBO® ISO viscosity grade T 46
Amount oil need for this pump:  1.6 Pints

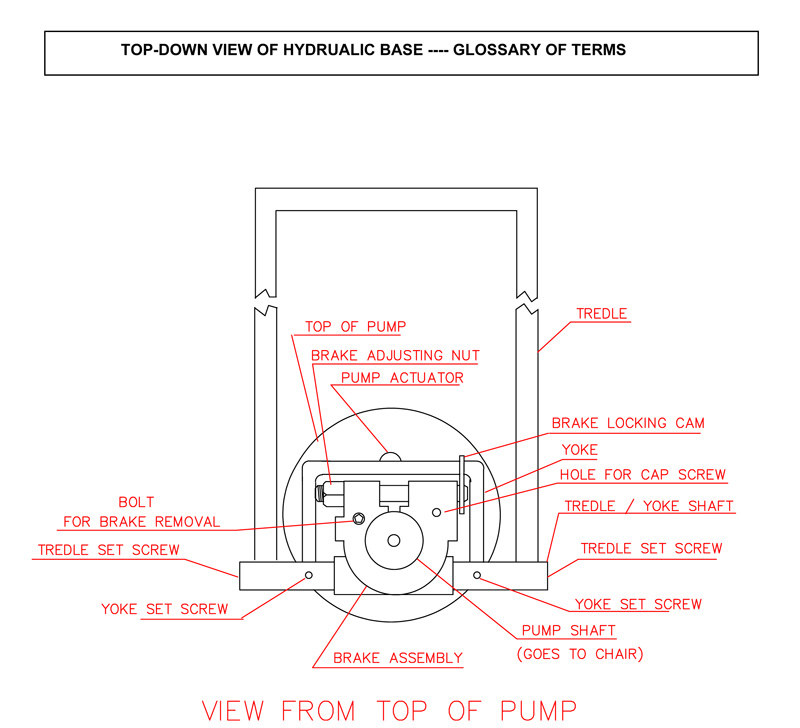

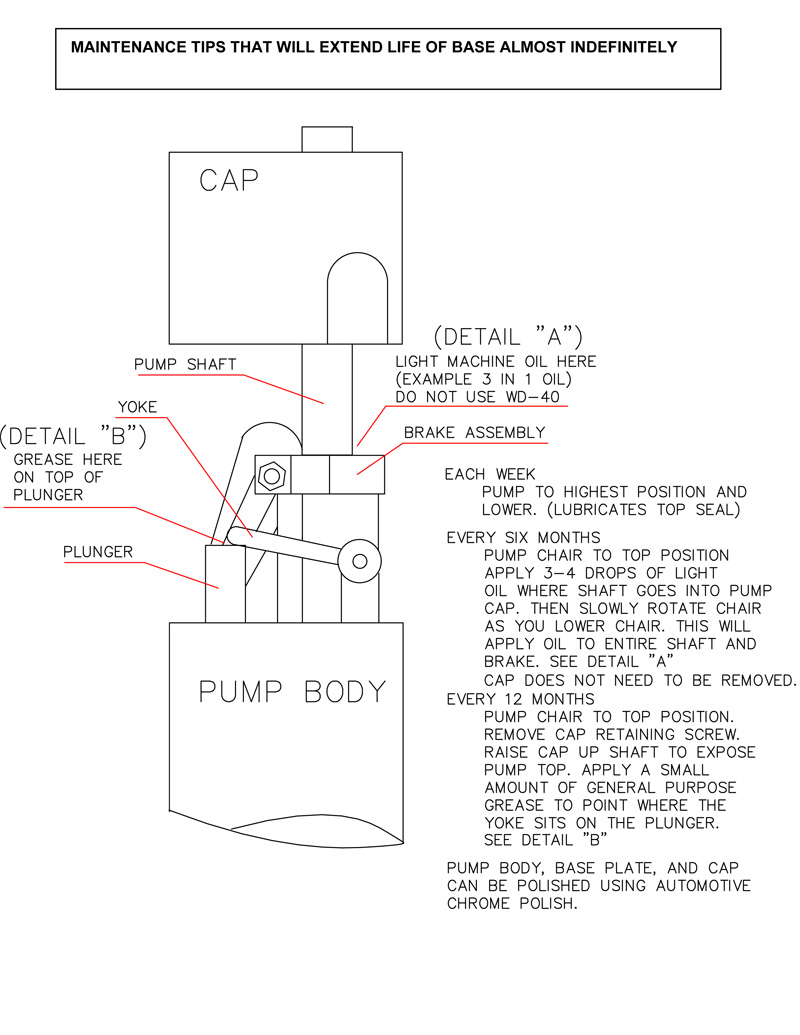

Pump Repair Info and Schematics



Salon Chair 4-1/2" O.D. Standard Hydraulic base Pump REPAIR KIT *    $ 39.97




*******************************************






HYDRAULIC PUMP FOOT TREADLE (pedal or bail)
* Fits STANDARD 4-1/2" OD HYDRAULIC PUMP *
made in U.S.A.


Fits standard 4.5" OD hydraulic pump
* Measurement across top of pump should measure 4-1/2" for this part to fit:

To confirm part, you are welcome to e-mail a photo of the pump and broken Foot Pedal (Treadle) to customerservice@CacheBeauty.com Attn: Bill
* This part will fit many brands but the seat manufactuer must be in the U.S. !!!
Brand names like: Collins, Jeffco, Veeco, Belvedere, Belmont, Pibbs and Kaemark

* To better help us get you the right part Please supply us with info off the WHITE Production Tag. (Look for WHITE production tag affixed to the bottom of the seat for Manufacture name, Production # and Date.)

*** Fits 4-1/2" O.D. Standard Hydraulic Pump only made in U.S.A.

Shape and material:
* 1/2" round, "U" Shape, chrome steel rod
* Has a set screw hole drilled in top of each end to fasten Treadle on to pump
* Overall Dimensions: 6-1/6" Wide X 13-1/8" Lomg
* SHAPE: 1-1/2" to first bend (appoximately 45 degree bend), then 8" to next bend (appoximately 15 degree bend), then 3-5/8" to the next bend (appoximately 90 degree), then 5-3/8" to next bend (appiximately 90 degree), then 3-5/8" to the next bend (appoximately 15 degree bend), then 8" to next bend (appoximately 45 degree bend), 1-1/2" to other end.
* this is the Pedal that will fit 85% of the U.S.A. made hydraulic pumps for the 4-/12" OD models.

Usually Ships in 2 - 3 days then 3 - 10 days to deliver on UPS or USPS

*** THIS ITEM IS NON-RETURNABLE ***



Note:
If replacing this part you may also need the
2 - Set Screw



** Hydraulic Base & Pump in picture NOT included. Only shown for reference !


HYDRAULIC PUMP FOOT TREADLE (pedal or bail) * Fits STANDARD 4-1/2" OD HYDRAULIC PUMP    $ 46.75



*******************************************





Hydraulic Pump Lock Assembly for 4-1/2" Pump
* Thick Steel Part *

This is the Part That Locks the Shaft * Not Allowing the Shaft to Turn
* A Large Thick Steel Part in a Horse Shoe Shape with holes in the ends allowing a bolt to go thru one side and threaded into the other side
Once installed and Adjusted when you raise the foot pump it will raise
the arm attached to this part Squezzing the part tight against the pump shaft so the shaft can not turn.
* Adjustment is need to get the part to the proper thigtness so it will
be loose when not need and tight enough to lock the shaft to keep it from turning.

* for 4-1/2" O.D. Pump

** Why this part needs to be replaced: Once the part has been tighten
to the tightes posistion then it will not loosen up which will make it hard to pump up the pump and Especialy Not allowing the pump to be lowered.

* Fits Collins, Jeffco, Kaemark and Belvedere brand standard hydraulic pumps
* May fit others

*** Fits ONLY 4-1/2" O.D. Hydraulic Pump

Usually Ships in 2 - 3 days then 3 - 10 days to deliver on UPS or USPS

*** THIS ITEM IS NON-RETURNABLE ***

Hydraulic Pump Lock Assembly for 4-1/2" Salon Chair Pump * Thick Steel Part *     $ 48.85



*******************************************





Hydraulic Pump Yoke * for 4.5" O.D. Pumps * Fits: COLLINS, Kaemark & Other Salon Chair Pumps

* Pump is also use on Dog Grooming Tables

Hydraulic Pump "YOKE" for 4.5" O.D. Pumps
* 3/8" - "U" Shape Steel Rod
* Dimension : 3-5/8" Wide x 3" Long
* a slight bent in the center of Each of the 3" Long Legs
* Has halve a hole drilled, 3/8" from the end of each leg, these holes are recipcals for the allen screws that go thru the Pedal Rod to hold the Yoke in place.
* Yoke for 4.5" O.D. Pump
* Pump is Also use on Dog Grooming Tables
* In Stock Ready to Ship
* Fits ONLY U.S. made hydraulic pump

Usually Ships in 2 - 3 days then 3 - 10 days to deliver on UPS or USPS

*** THIS ITEM IS NON-RETURNABLE ***

Hydraulic Pump Yoke * for 4.5" O.D. Pump    $ 24.50



*******************************************





Salon Chair Part: Hydraulic Pump Plunger SPRING Long



* Hydraulic Pump Plunger SPRING Long
* 1-1/2" Dia. Coil Spring x 5" Long
* Material: 1/8" Dia. Steel rod in spring coil
* This PART consists of the PLUNGER SPRING ONLY
* Fits Salon Chair 4", 4-1/2" and 5-1/2" O.D. Hydraulic Pump
* Fits Collins, Kaemark and Many other brands Heavy Duty Hydraulic Pumps
* FITS: U.S. Made Hydraulic Pump ONLY

This PART consists of the PLUNGER SPRING ONLY



Salon Chair Part: Hydraulic Pump Plunger SPRING Long    $ 26.50



*******************************************





23 inch / 24 inch

Hydraulic Base Ring

* Black Rubber



This protective outer ring helps to protect the floor from the metal edge of the hydraulic baseplate. Also helps to keep chair from sliding around.
* Material: Rubber
* Color: BLACK
* Fits Collins, Jeffco and Kaemark brand standard hydraulic base
* Fits Collins, Veeco, Belmont, Belvedere and Kaemark brand 23"/24" Standard Hydraulic base
* This Rubber Ring is used by many chair manufactures on their chair base some will describe it as a 23" some a 24" base but either one this will fit.
* Rubber length 72.25"

To better determine if this part fits your chair look for the Chair Model number printed on the "White Tag" stapled to the bottom of your chair seat.

Any Question call 1-870-972-5300 with Make & Model # printed on the white tag.



23 inch/24 inch Hydraulic Base Ring * Black Rubber     $ 31.99



*******************************************





Salon Chair Hydraulic REPLACEMENT Pump for 4-1/2" O.D. * Pump Only
* Also Replaces Belvedere 4X4 Hydraulic Pump * Pump Only

Item # 00607020045006

Replaces Belvedere standard 4" OD hydraulic pump (4 X 4)
* Measurement across top of your pump it should measure 4" for this pump to fit:

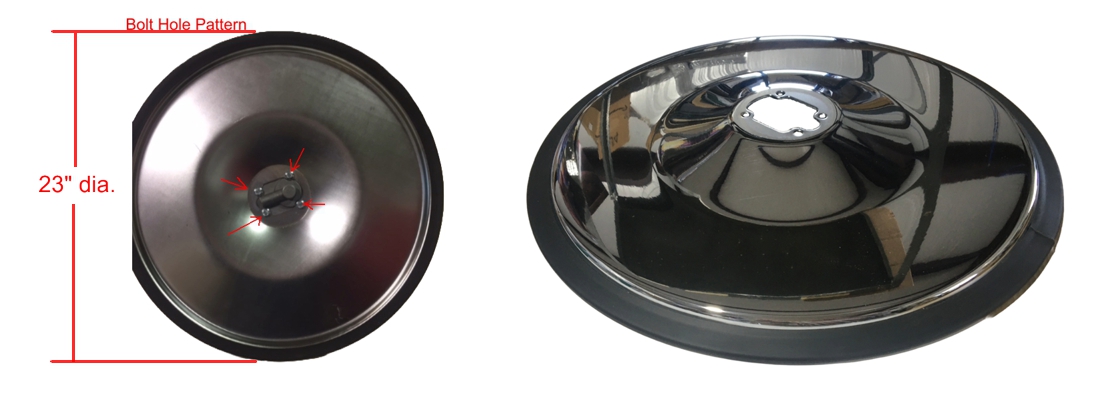

* This Pump replaces ONLY U. S. A.. Made 4.0" O.D. and 4-1/2" O.D. Hydraulic pump that is only used on 23" Round Base Plate like: Collins 23" dia. Round Base

* Both this 4-1/2" D.O. and the 4.0" O.D. pump have the SAME BOLT HOLE PATTERN to bolt on to the Base Plate or the Belvedere 5-Star Base

* Fits Collins, Jeffco, Veeco, Kaemark, Belvedere, Belmont and many other brands

* This is a U.S. A. Made pump!

* Chrome Finish

* This is JUST the pump. No hardware or base plate.

* You will need to reuse the Cap & Screw, shaft's roll pin and Foot Treadle & 23" dia. Round Base Plate, or Belvedere's 5-Star Base

** NOTE: Belvedere's Foot Treadle(Pedal) will NOT fit this pump!

** Also you may need to purchase a New Foot Treadle (Pedal) and a New Cap with Screw

* Please send picture of pump being replaced to: customerservice@cachebeauty.com (1) one or more pictures of under the top cap showing the top of the pumps workings, complete pump base and under base plate showing the bolt hole pattern.

* Pump MUST measure 4.0" O.D. or 4-1/2" (4.5") OD across the pump (under cap).

* For bolt hole orientation the back of the pump is where the foot tread (peddle) is located.

* The four 5/16" bolt holes in bottom of casting are used to bolt pump to base plate.

* The two bolt holes in the front of bottom measure 2-7/16" from (center to center of bolt holes).

* The two bolt holes in the back of the bottom measure 1-11/16" from (center to center of bolt holes).

* Again both this 4-1/2" D.O. and the 4.0" O.D. pump have the SAME BOLT HOLE PATTERN to bolt on to the Base Plate

or the Belvedere's 5-Star Base.

* Over all Height of pump measures 14-3/4" from the very bottom of slump on pump to the top of the shaft (shaft in lowest down position).

* NOTE: Molded into the Bottom of Pump casting is "Made in USA"

* Pump ONLY !

*** THIS ITEM IS NON-RETURNABLE ***

Please allow 3 - 14 days to ship and 3 - 10 days to deliver

* Item can only be shipped on UPS GROUND

* Price shown + Shipping cost to your location



Salon Chair Hydraulic REPLACEMENT Pump for 4-1/2" O.D. * Pump Only

* Also Replaces Belvedere 4X4 Hydraulic Pump * Pump Only   $ 243.99




Item # 00607020045006

Item # 607021045531

Item # Cap and Screw



*******************************************





607021045524

Salon Chair Part: 4.5 O.D. hydraulic   PUMP CAP   * Black



* Hydraulic Pump Cap
* Fits standard 4.5" OD hydraulic pump * Measurement across top of pump (under cap). Should measure 4-1/2" for this part to fit.
* Also will fit the Belvedere 4 X 4 hydraulic pump when fitted with the "U" shape Foot Treadle (Pedal)
* Material: Plastic
* Appoximate Overall Dimensions: 4-11/16" Wide X 3-5/8" Tall
* Has a 1/4" dia. screw hole in top to fasten Cap on to pump, 1-1/4" dia. hole in top to accommodate pump shaft and two 1-1/16" wide x 1-1/2" tall slots on side to accommodate the foot treadle (pedal).
* This part will fit many brands but the seat manufactuer must be in the U.S.A. !!! Brand names like: Collins, Jeffco, Veeco, Belvedere and Kaemark
* (Look for WHITE production tag afixed to the bottom of the seat for chair seat manufacturer's info.)
* This is the PUMP CAP that will fit 85% of the U.S. made hydraulic pumps for the 4-/12" O.D. size model.
* FITS: U.S.A. Made Hydraulic Pump ONLY

This PART consists of the Black Plastic Cap and its Screw



Salon Chair Part: Hydraulic Pump CAP Black    $ 45.99



*******************************************
