CacheBeauty.com: Belmont Koken Barber Chair BB-225 Apron, Platform Calf Support parts

Replacement Part ONLY !

BELMONT UPPER SASH
* Chrome Top part of apron.
* Fits ONLY Takara Belmont / Koken Barber Chair model BB-225
* TOP Sash * when setting in the chair this item would be under your leg calf )
* A chrome part going from the right to left side to hold the Apron on to the chair.
* The Upper Sash has a channel that the top of the apron fits into so the top edge of the apron is not exposed.
* #411 Upper Sash in schematic of BB-225 Barber Chair
* Bolts (see bolts & nuts below) onto the side of "Goosenecks" #406-1R (right) and 406-1L (left) in schematic
* Appoximate size: 15.75" wide X 13/16 inch Tall X 1.75 Deep
* Sash has a 1.75" Curvature
* UPPER SASH Only.
** Compare yours to pictures shown
** SPECIAL ORDER part * please allow 14 days to ship and then 3 - 10 days to deliver.

Belmont BB-225 Barber Chair Part * Upper Sash

$ 65.50

**************************

Item # 098268618105 * LOWER

Replacement Part ONLY !

BELMONT LOWER SASH
* Chrome Top part of apron.
* Fits ONLY Takara Belmont / Koken Barber Chair model BB-225
* TOP Sash * when setting in the chair this item would be under your leg calf )
* A chrome part going from the right to left side to hold the Apron on to the chair.
* #411 Lower Sash in schematic of BB-225 Barber Chair
* Bolts (see bolts & nuts below) onto the side of "Goosenecks" #406-1R (right) and 406-1L (left) in schematic
* Appoximate size: 15.75" wide X 13/16 inch Tall X 1.75 Deep
* Sash has a 1.75" Curvature
* LOWER SASH Only.
** Compare yours to pictures shown
** SPECIAL ORDER part * please allow 14 days to ship and then 3 - 10 days to deliver.

Belmont BB-225 Barber Chair Part * Lower Sash

$ 65.50

To see the Schematic of this BB-225 Barber Chair click HERE

See the Foot Glide for the Takara / Belmont LEGACY Barber Chair model BB-0090 HERE

See the Foot Glide for the some imported styling chairs HERE

************************************************************************

Takara Belmont / Koken Elegance
model BB-225 BARBER Chair PART:

Apron Sash Fixing Plates * Upper and Lower

The Fixing Plates are not shown on the schematic. They are on the backside of the #411 Sashes

Item # 09826850168216

The Fixing Plates are on the backside of the Apron's Upper and Lower Sashes

Item # 09826850168216

View

Item # 09826850168216

Replacement Parts ONLY !
* Both Upper and Lower Apron Sash Fixing Plates is the backside frame srtip.
* Backside Steel Bar that attaches to each Sash and also attaches to chair legs.
* (2) FIXING PLATES per package (both are the same)
* Approximate Size: 16-11/16" Long X 5/8" Wide X 1/8 Thick
* 3/16" Bolt Hole on each end
* 1/4" x 7/16" Vertical Slot, Slotted for micro adjustment
* 1/4" x 7/16" Horzontal Slot, 2-1/2" from each end, Slotted for micro adjustment
* Shape is: Slight Curve
* Fits ONLY Takara Belmont / Koken Barber Chair model BB-225
** Compare your's to pictures
** Special Order part. Please allow 2 - 3 weeks to ship then delivered in 3 - 10 Business Days

Item # 09826850168216

* THIS ITEM IS NON-RETURNABLE

Belmont BB-225 Barber Chair Part * Apron Sash Fixing Plates (2)

$ 36.00

To see the Schematic of this BB-225 Barber Chair click HERE

************************************************************************

Takara Belmont / Koken Elegance
model BB-225 BARBER Chair PART:

Bolts & Nuts (4 of each) to hold Upper & Lower Sashes on to chair

Item # 09826818202006

Replacement Part ONLY !
* Bolts slide through the side of Gooseneck an through the Fixing Plate where the Nut then
attaches into the chair's Upper and Lower Sashes (4-bolts & 4-Nuts) to hold the Sashes and Apron onto chair
* Approximate Bolt size: : 5mm wide X 19mm long X 13mm thread length
* Bolt shape is: Phillips Drive, Oval Beveled (Countersunk) Head, All Thread
* Color: Chrome Steel
* Four (4) Bolts and Four (4) Nuts ONLY !
* Fits ONLY Takara Belmont / Koken Barber Chair model BB-225
** Compare yours to pictures shown
* Usually 1 set in stock, if more are needed Please allow 2 - 3 weeks to ship then delivered in 3 - 10 Business Days

Item # 09826818202006

* THIS ITEM IS NON-RETURNABLE

Belmont BB-225 Barber Chair Part * Bolts & Nuts (4 of each) to hold Sashes on to chair

$ 16.99

To see the Schematic of this BB-225 Barber Chair click HERE

************************************************************************

Takara Belmont / Koken Elegance
model BB-225 BARBER Chair PART:

BOLT (# 417-4 in schematic) that connects the (# 417-1) Reclining Connecting Bar and the (# 406-1)(R&L) Gooseneck

Item # 098255364107

Replacement Part ONLY !
* BOLT (# 417-4 in schematic) that connects the (# 417-1) Reclining Connecting Bar and the (# 406-1)(R&L) Gooseneck.
* The Bolt (417-4) bolts through the (417-1) into chair's Gooseneck (406-1R)(right) or (406-1L)(left)
* Bolt shape is: Flat Head, Phillips Drive, Countersunk
* Color: Chrome Steel
* Approximate Metric Bolt size: 8mm wide X 38mm long with 20 thread count
* Fits ONLY Takara Belmont / Koken Barber Chair model BB-225
* Two Bolts (2) per package Only
** Compare yours to pictures shown

* Usually 1 set in stock, if more are needed Please allow 2 - 3 weeks to ship then delivered in 3 - 10 Business Days

Item # 098255364107

* THIS ITEM IS NON-RETURNABLE

Belmont BB-225 Barber Chair Part * 2 - Bolts to connect the Reclining Connecting Bar and the Gooseneck.

$ 21.00

To see the Schematic of this BB-225 Barber Chair click HERE

************************************************************************

Takara Belmont / Koken Elegance
model BB-225 BARBER Chair PART:

BOLT and Nut (# 417-7 in schematic)
That connects the (# 417-1) Reclining Connecting Bar and the (# 417-6) Reclining Connecting Bar for Platform

Item # 092151099101

Replacement Part ONLY !
* BOLTS (# 417-7 in schematic) connects the (417-1) Reclining Connecting Bar and the (417-6) Reclining Connecting Bar for Platform
* The Bolt (417-7) bolts through the Reclining Connecting Bar (417-1) and through the Reclining Connecting Bar for Platform (417-6)
* Bolt shape is: Hex Head, Wrench Drive, Sholder bolt
* Color: Chrome Steel
* Approximate Metric Bolt size 8x25: 8mm wide X 25mm long X 15 thread count
* Fits ONLY Takara Belmont / Koken Barber Chair model BB-225
* Two Bolts (2) per package Only
** Compare yours to pictures shown

* Usually 1 set in stock, if more are needed Please allow 2 - 3 weeks to ship then delivered in 3 - 10 Business Days

Item # 092151099101

* THIS ITEM IS NON-RETURNABLE

Belmont BB-225 Barber Chair Part * 2 BOLTS (# 417-7) connects the Reclining Connecting Bar and the Reclining Connecting Bar for Platform.

$ 16.00

To see the Schematic of this BB-225 Barber Chair click HERE

************************************************************************

Takara Belmont / Koken Elegance
model BB-225 BARBER Chair PART:

Half Thread Platform Bolts (2)

Item # 0982684170708

Replacement Part ONLY !
* Bolts slide thru the side of Gooseneck an into the chair's foot rest Platform (2-bolts) to hold the Platform section allowing it to swivel.
* Approximate Bolt size: : 22.2mm wide X 20.6mm long X 5.55mm thread
* Bolt shape is: Flat Head, Shoulder, Half Thread
* Color: Chrome Steel
* Two (2) Bolts ONLY !
* Fits ONLY Takara Belmont / Koken Barber Chair model BB-225
** Compare your's to pictures
* Usually 4 sets in stock, if more are needed Please allow 2 - 3 weeks to ship then delivered in 3 - 10 Business Days

Item # 0982684170708

* THIS ITEM IS NON-RETURNABLE

Belmont BB-225 Barber Chair Part * Half Thread Platform Bolts (2)

$ 33.97

To see the Schematic of this BB-225 Barber Chair click HERE

************************************************************************

Takara Belmont / Koken Elegance
model BB-225 BARBER Chair PART:

SETTING PIN for PLATFORM (2)

Item # 0982684130207

Replacement Part ONLY !
* Setting Pin threads into the inside of the bottom of the Gooseneck of chair to support the footrest Platform.
The bottom of the Platform right and left edge sets upon the shoulder of this bolt, acting as a stop pin.
* Approximate Bolt size: : 1.5mm wide X 3.5mm long X 1.25mm thread
* Bolt shape is: HEX Head, Shoulder, Half Thread
* Color: Chrome Steel
* Two (2) Bolts ONLY !
* Fits ONLY Takara Belmont / Koken Barber Chair model BB-225
** Compare your's to pictures
* Usually 4 sets in stock, if more are needed Please allow 2 - 3 weeks to ship then delivered in 3 - 10 Business Days

Item # 0982684130207

* THIS ITEM IS NON-RETURNABLE

Belmont BB-225 Barber Chair Part * SETTING PIN for PLATFORM (2)

$ 33.97

To see the Schematic of this BB-225 Barber Chair click HERE

***********************************************************************************

Takara Belmont / Koken Elegance
model BB-225 BARBER Chair PART:

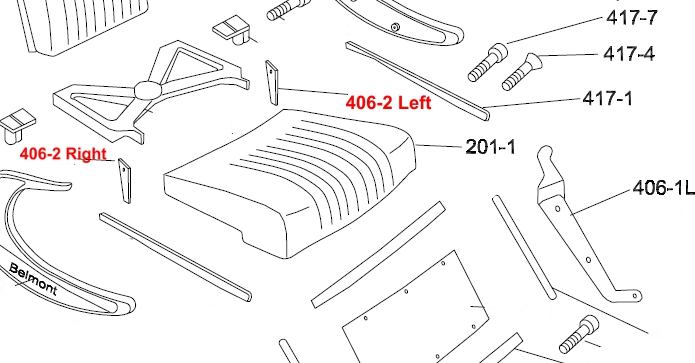

STOPPER PLATES for GOOSENECK

RIGHT STOPPER PLATE ** Item # 0982684060207

LEFT STOPPER PLATE ** Item # 0982684060221

RIGHT STOPPER PLATE ** Item # 0982684060207

LEFT STOPPER PLATE ** Item # 0982684060221

Replacement Part ONLY ! RIGHT STOPPER PLATE

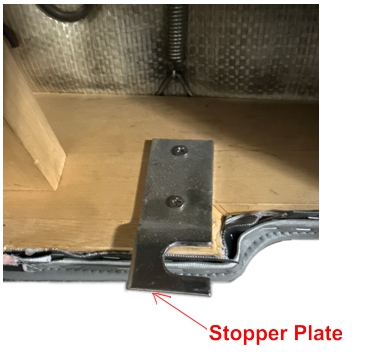

* RIGHT Stopper Plate for Gooseneck of chair to stop the chair seat from lifting-up when legrest kicks out.
* Approximate size: : wide ?? X ?? long X ?? thick
* "The part will not allow the chair seat to lift-up when legrest kicks out."
* Color: Steel
* One (1) Only RIGHT Stopper Plate !
* Fits ONLY Takara Belmont / Koken Barber Chair model BB-225
** Compare your's to pictures
*** This part is usually not stocked in the US! Lead time on this item is 14 - 16 weeks
* Traditionaly this item is a Special Order item and may take 14 - 16 weeks to ship then delivered in 3 - 10 Business Days

Item # 0982684060207

* THIS ITEM IS NON-RETURNABLE

Belmont BB-225 Barber Chair Part * STOPPER PLATE for GOOSENECT * RIGHT Plate

$ 17.49

************************************

Replacement Part ONLY ! LEFT STOPPER PLATE
* LEFT Stopper Plate for Gooseneck of chair to stop the chair seat from lifting-up when legrest kicks out.
* Approximate size: : wide ?? X ?? long X ?? thick
* "The part will not allow the chair seat to lift-up when legrest kicks out."
* Color: Steel
* One (1) Only LEFT Stopper Plate !
* Fits ONLY Takara Belmont / Koken Barber Chair model BB-225
** Compare your's to pictures
*** This part is usually not stocked in the US! Lead time on this item is 14 - 16 weeks
* Traditionaly this item is a Special Order item and may take 14 - 16 weeks to ship then delivered in 3 - 10 Business Days

Item # 0982684060221

* THIS ITEM IS NON-RETURNABLE

Belmont BB-225 Barber Chair Part * STOPPER PLATE for GOOSENECT * LEFT Plate

$ 17.49

To see the Schematic of this BB-225 Barber Chair click HERE

***********************************************************************************
