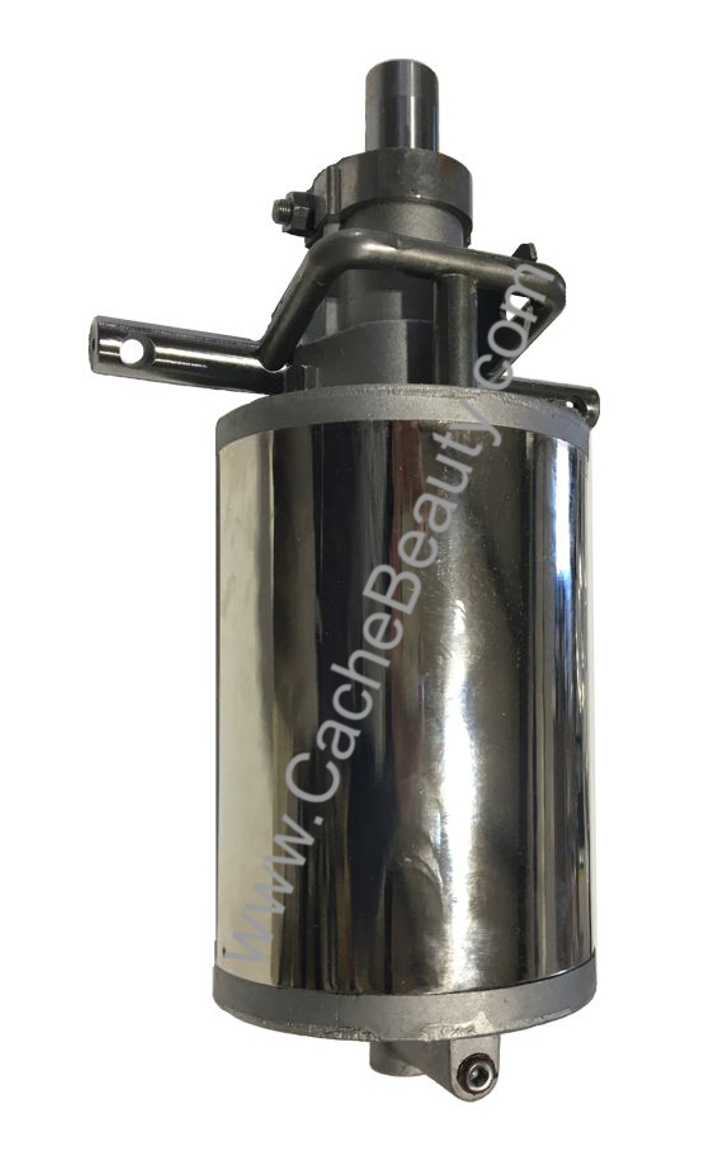

Heavy Duty Hydralic Pump Repair Info

* This Pump replaces ONLY U. S. A.. Made 5-1/2" O.D. Hydraulic pump that is only used on 27" Round Base Plate like: Collins 27" dia. Round Base

* This 5-1/2" O.D. pump has a Three (3) BOLT HOLE PATTERN to bolt on to the 27" Round Base Plate or the Belvedere Porcelain Enamel Cast Iron Triangle Base

* Fits mainly barber chairs made by Collins, Jeffco, Kaemark, special chairs made by Belvedere as well as many other brands

* This is a U.S. A. Made pump!

* Chrome Finish

* This is JUST the pump. No hardware or base plate.

* You will need to reuse the Cap & Screw, shaft's roll pin and Foot Treadle & the 27" dia. Round Base Plate, or Belvedere's Porcelain Enamel Cast Iron Trangle Base

** NOTE: Belvedere's Foot Treadle(Pedal) will NOT fit this pump!

** You will need to purchase a New Foot Treadle (Pedal) and a New Cap with Screw

* Please send picture of pump being replaced to: customerservice@cachebeauty.com (1) one or more pictures of under the top cap showing the top of the pumps workings, complete pump base and under base plate showing the bolt hole pattern.

* Pump MUST measure 5.5" O.D. across the pump (under cap).

* The three 5/16" bolt holes in bottom of casting are used to bolt pump to base plate.

* Again the outside diameter of this pump is 5-1/2" O.D.

* Over all Height of pump measures 14-3/4" from the very bottom of slump on pump to the top of the shaft (shaft in lowest down position).

* NOTE: Molded into the Bottom of Pump casting is "Made in USA"

* Pump ONLY !

*** THIS ITEM IS NON-RETURNABLE ***

Please allow 3 - 14 days to ship and 3 - 10 days to deliver

* Item can only be shipped on UPS GROUND

* Price shown + Shipping cost to your location

Salon Chair Hydraulic REPLACEMENT Pump for 5-1/2" O.D. * Pump Only

* Also Replaces Belvedere Hair Salon 30 and 35 Hydraulic Pump * Pump Only   $ 299.97

*******************************************************************************

Salon Chair REPLACEMENT FOOT TREADLE (Bail) for 5-1/2" O.D. Hydraulic Pump aka: Heavy Duty pump

* Replaces foot pedal mainly used on barber chairs for the following brands Collins, Jeffco, and Kaemark

* FOOT TREADLE (Bail) Only!!!

Item # 607021055189

Replaces Foot Treadle for Collins, Jeffco, Kaemark, Veeco (some) and Pibbs (some) standard 5.5" OD hydraulic pump
* Measurement across top of your pump it should measure 5.5" for this pump to fit:

* This FOOT TREADLE replaces ONLY "Made in U. S. A." 5-1/2" O.D. Hydraulic pump that is only used on 27" Round Base Plate like: Collins 27" dia. Round Base
* This 5-1/2" O.D. pump has a Three (3) BOLT HOLE PATTERN to bolt on to the 27" Round Base Plate
* Fits mainly barber chairs made by Collins, Jeffco, Kaemark, as well as many other brands
* This is a U.S. A. Made pump!
* Chrome Finish
* This is JUST the Foot Treadle. No hardware, pump or base plate.
* Fits standard 5.5" OD hydraulic pump
Measurement across top of pump should measure 5-1/2" for this part to fit:
To confirm part, you are welcome to e-mail a photo of the pump and broken Foot Pedal (aka Treadle or bail) to customerservice@CacheBeauty.com Attn: Bill
* This part will fit many brands but the seat manufactuer must be in the U.S. !!!
Brand names like: Collins, Jeffco, Veeco, Belvedere, Belmont, Pibbs and Kaemark
* To better help us get you the right part Please supply us with info off the WHITE Production Tag. (Look for WHITE production tag affixed to the bottom of the seat for Manufacture name, Model, Production # and Date.)
*** Fits 5-1/2" O.D. Standard Hydraulic Pump only made in U.S.A.

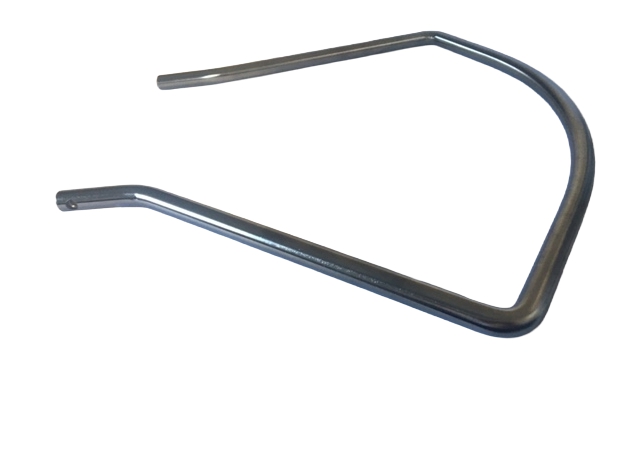

Shape and material:
* 1/2" round, "Round" Shape, chrome steel rod
* Has a set screw hole drilled in side of each end to fasten Treadle on to pump
* Overall Dimensions: 15-1/4" Wide X 13-3/8" Long
* SHAPE: 2" to first bend (appoximately 45 degree bend), then 8" to next bend (appoximately 80 degree round bend), then 4-5/8" to the next bend (rounded), then 4-5/8" to next bend (rounded), then 4-5/8" to the next bend (appoximately 80 degree bend), then 8" to next bend (appoximately 45 degree bend), 2" to other end.
* this is the Pedal that will fit 95% of the U.S. made hydraulic pumps for the 5-1/2" OD models.
** Special Order Part **
Usually 0ne or Two in stock
But if more are needed then Please allow 3 - 14 days to ship then 3 - 10 days to deliver on UPS

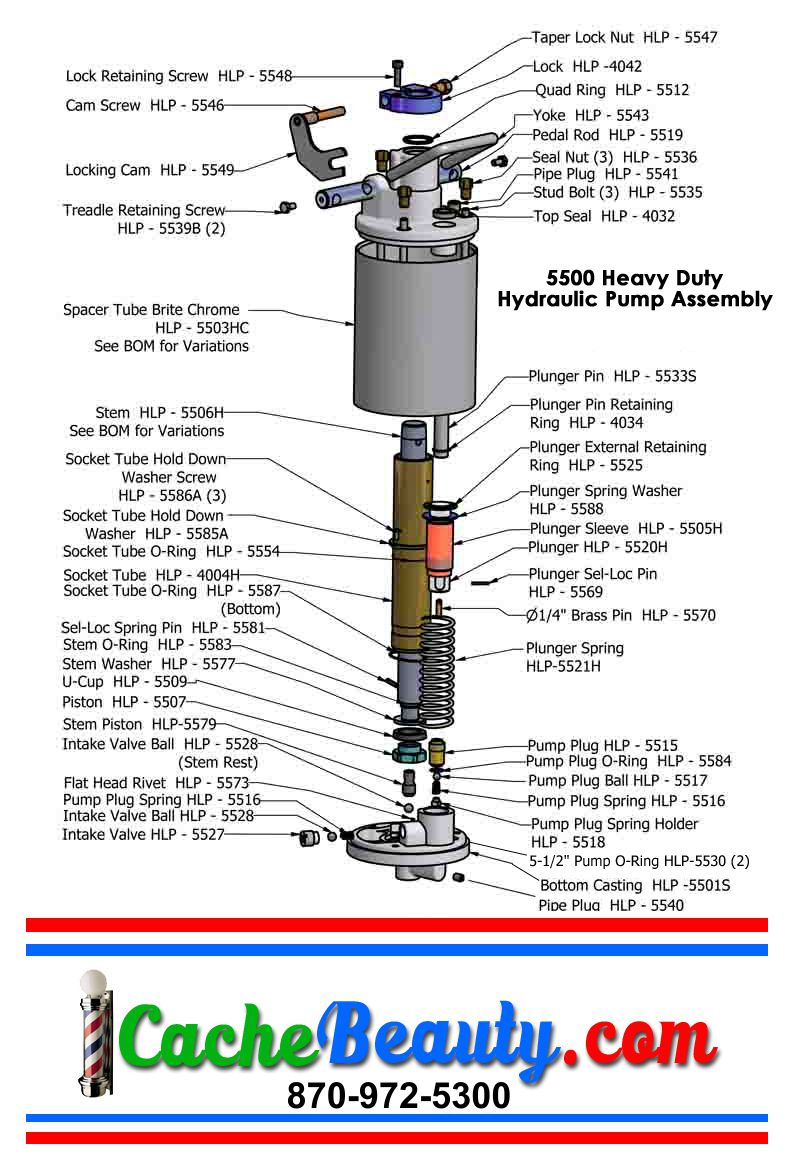

See schematic for this pump on web page:
https://cachebeauty.com/Parts/heavyduty_pump_repair_info.htm
Note:
If replacing this part you may also need the
2 - Set Screw
*** THIS ITEM IS NON-RETURNABLE ***
** Hydraulic Base & Pump in picture NOT included. Only shown for reference !

Salon Chair Hydraulic REPLACEMENT FOOT TREADLE for 5-1/2" O.D. Pump * Foot Pedal Only      $ 64.75

* Also Replaces Belvedere Hair Salon 30 and 35 Hydraulic Foot Pedal (Bail) * Foot Pedal Only (send pictures to confirm)
